A4S200R control unit with mounting parts for BMW 3 Series E46 318i (2001)

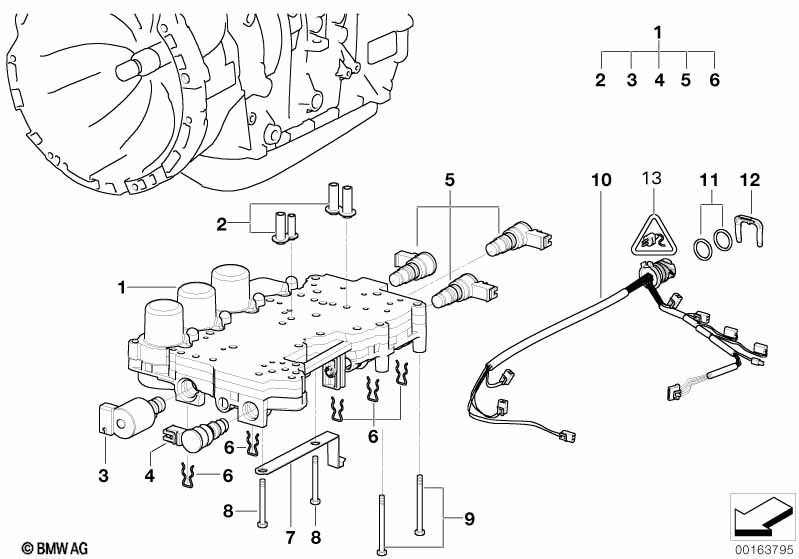

This A4S200R control unit with mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set, control unit | 1 | 06/2000 | 24307509479 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set plug | 1 | 09/1999 | 24167504749 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pressure regulator, main pressure | 1 | 09/1999 | 24321423988 | $101.37 | Shop at ECS Tuning | ||||
| 04 | Pressure regulator,convert.lockup clutch | 1 | 09/1999 | 24327532013 | $66.86 | Shop at ECS Tuning | ||||
| 05 | Solenoid valve On/Off | 3 | 09/1999 | 24337504753 | $51.85 | Shop at ECS Tuning | ||||
| 06 | Clamp | 5 | 09/1999 | 24331423599 | $1.67 | ENDED | Shop at ECS Tuning | |||
| 07 | Bracket temperature switch | 1 | 09/1999 | 24351423598 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 08 | Torx screw | M6X50-8.8 | 8 | 09/1999 | 24351423964 | $1.32 | ENDED | Shop at ECS Tuning | ||
| 09 | Hex bolt | 2 | 09/1999 | 24521423596 | $1.54 | Shop at ECS Tuning | ||||
| 10 | Wiring harness with temperature sensor | 1 | 06/2000 | 24367551877 | $183.79 | ENDED | Shop at ECS Tuning | |||
| 11 | O-ring set | 1 | 09/1999 | 24101423176 | $6.49 | ENDED | Shop at ECS Tuning | |||
| 12 | Fixing clamp | 1 | 09/1999 | 12521732375 | $1.90 | Shop at ECS Tuning | ||||
| 13 | Plug housing | 1 | 09/1999 | 12521433183 | $13.40 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 0,5- 1,0 MM² | 20 | 09/1999 | 61130007656 | $4.75 | Shop at ECS Tuning | |||
