Gearbox mounting for BMW 3 Series E46 316ti (2004)

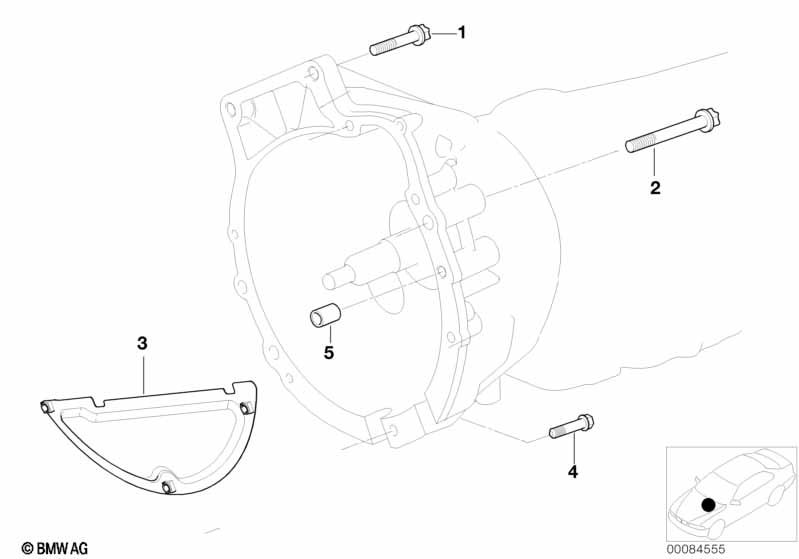

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X75 | 4 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Covering plate | 1 | 23007505958 | $3.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X40 | 3 | 23007519717 | Shop at ECS Tuning | |||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
