Emergency release for BMW 7 Series E66 735Li (2004)

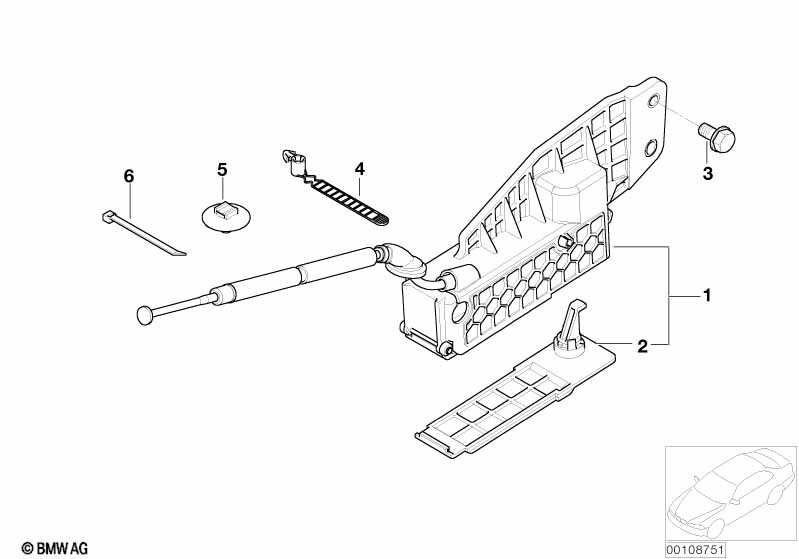

This Emergency release technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 735Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Emergency mechanism | 1 | 24507573345 | Shop at ECS Tuning | ||||||
| 02 | Cover | 1 | 24507525074 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Cable tie | L=119MM | 1 | 61138357028 | Shop at ECS Tuning | |||||
| 05 | Push-button | 1 | 51481900729 | $0.50 | Shop at ECS Tuning | |||||
| 06 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 735Li Emergency release?
- This technical diagram illustrates the Emergency release within the Automatic transmission group for the 7 Series E66 735Li produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Emergency mechanism (Part #24507573345).
- Which models use the hardware listed in this Emergency release?
- The hardware and components featured in the Emergency release are specific to the 7 Series E66 735Li produced during 2004. These technical specifications ensure that parts like the Emergency mechanism (24507573345) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emergency release assembly?
- Each item in the Emergency release corresponds to the numbered list below the illustration. For the 7 Series E66 735Li, you can identify the Emergency mechanism by locating its position on the schematic, which then links to the official BMW part number 24507573345 for the Automatic transmission section.
