ZF 4hp22/24 ax-bearing single parts for BMW 5 Series E28 528e (1987)

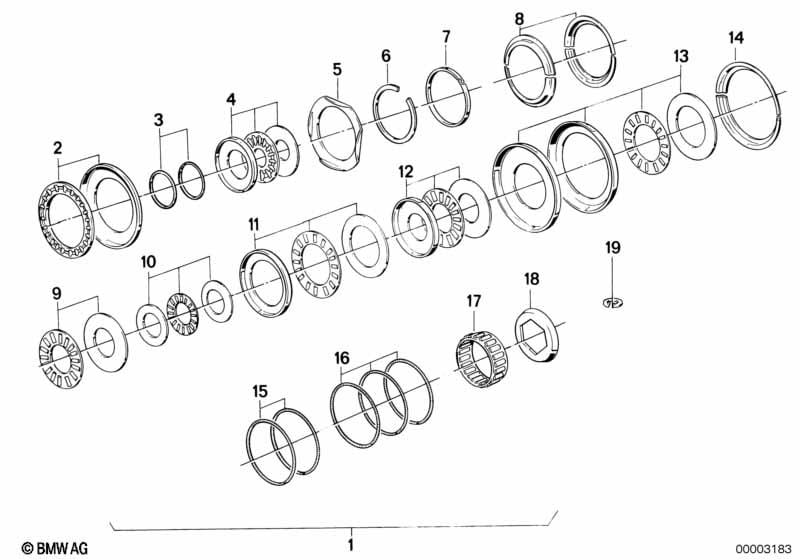

This ZF 4hp22/24 ax-bearing single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair set ax-bearing | 1 | 24001215582 | $182.81 | Shop at ECS Tuning | |||||
| 02 | AX bearing | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 03 | Rectangring | 22,7X25X2 | 2 | 24211216345 | $14.03 | Shop at ECS Tuning | ||||
| 04 | AX bearing | 1 | 24231215422 | $6.41 | Shop at ECS Tuning | |||||
| 05 | Circlip | 1 | 24231205931 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Snap ring | 1 | 24231205934 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rectangring | 1 | 24231215980 | $12.19 | ENDED | Shop at ECS Tuning | ||||
| 08 | Supporting ring | 2 | 24231205946 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 09 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 10 | AX bearing | 1 | 24241215428 | $7.42 | ENDED | Shop at ECS Tuning | ||||
| 11 | AX bearing | 1 | 24241215430 | $12.14 | ENDED | Shop at ECS Tuning | ||||
| 12 | AX bearing | 1 | 24241215436 | $7.98 | Shop at ECS Tuning | |||||
| 13 | AX bearing | 1 | 24231215442 | $11.35 | Shop at ECS Tuning | |||||
| 14 | Supporting ring | 1 | 24231215443 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rectangring | 2 | 24231217140 | $12.19 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rectangring | 3 | 24231217141 | $6.48 | Shop at ECS Tuning | |||||
| 17 | Needle sleeve | 35X42X12 | 1 | 24111218008 | $14.67 | Shop at ECS Tuning | ||||
| 18 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
| 19 | Lock Ring | 10X1 | 8 | 24111218535 | $1.02 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
