ZF 4hp22/24-EH control unit+attach.parts for BMW 5 Series E28 520i (1987)

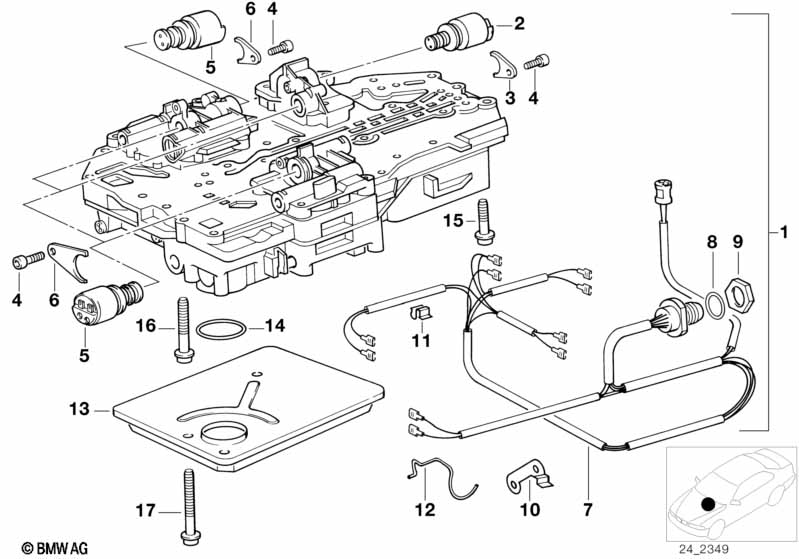

This ZF 4hp22/24-EH control unit+attach.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit | 1 | 24341216308 | ENDED | Shop at ECS Tuning | |||||
| 02 | Pressure regulator | 1 | 24341217078 | $674.80 | Shop at ECS Tuning | |||||
| 03 | Bracket | 1 | 24341217065 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | M5X12 | 5 | 24341215605 | ENDED | Shop at ECS Tuning | ||||
| 05 | Solenoid valve (SOLV) | 4 | 24341215599 | $313.30 | Shop at ECS Tuning | |||||
| 06 | Bracket | 4 | 24341215600 | $1.19 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cable harness | 1 | 24631217182 | $196.97 | ENDED | Shop at ECS Tuning | ||||
| 08 | O-ring | 1 | 24311218572 | $3.13 | Shop at ECS Tuning | |||||
| 09 | Nut | 1 | 24341218624 | $9.70 | Shop at ECS Tuning | |||||
| 10 | Cable clamp | 1 | 24351218089 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cable clamp | 5 | 24341215608 | $1.11 | Shop at ECS Tuning | |||||
| 12 | Spring | 1 | 24341218541 | $2.59 | ENDED | Shop at ECS Tuning | ||||
| 13 | Oil strainer | 1 | 24341215544 | ENDED | Shop at ECS Tuning | |||||
| 13 | Oil strainer | 1 | 24311218550 | $36.30 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 1 | 24311218570 | $1.59 | Shop at ECS Tuning | |||||
| 14 | O-ring | 1 | 24341217437 | $1.79 | ENDED | Shop at ECS Tuning | ||||
| 14 | O-ring | 1 | 24311218570 | $1.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Oil strainer | 1 | 24311218550 | $36.30 | Shop at ECS Tuning | |||||
| 15 | Torx bolt | M6X30 | 8 | 24341421078 | $1.61 | Shop at ECS Tuning | ||||
| 16 | Torx bolt | M6X60 | 3 | 24341422672 | $2.66 | Shop at ECS Tuning | ||||
| 17 | Fillister-head screw | M6X65 | 5 | 24341215492 | $2.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
