GA6HP19Z housing with mounting parts for BMW 3 Series E90 320d (2007)

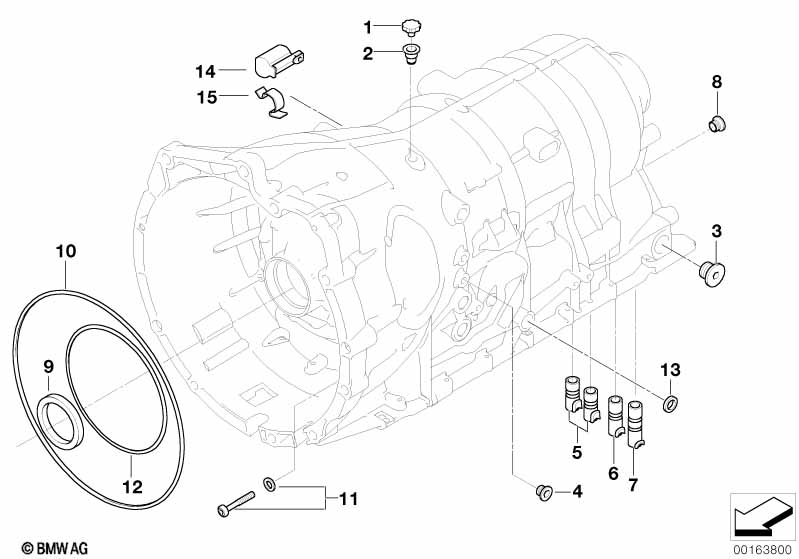

This GA6HP19Z housing with mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent cover | 1 | 24101422142 | $1.95 | Shop at ECS Tuning | |||||
| 02 | Vent pipe | 1 | 24101422141 | $5.93 | Shop at ECS Tuning | |||||
| 03 | Screw Plug With Gasket Ring | M18X1,5 | 1 | 24117552349 | $7.65 | Shop at ECS Tuning | ||||
| 04 | Screw Plug With Gasket Ring | M10X1 | 1 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
| 05 | Sealing sleeve | L=31,20MM | 2 | 24107536339 | $10.71 | Shop at ECS Tuning | ||||
| 06 | Sealing sleeve | L=35,50 | 1 | 24107536340 | $10.71 | Shop at ECS Tuning | ||||
| 07 | Sealing sleeve | L=48,90 | 1 | 24107536341 | $10.71 | Shop at ECS Tuning | ||||
| 08 | Screw Plug With Gasket Ring | M14X1,5 | 1 | 24007571205 | $6.30 | +core | Shop at ECS Tuning | |||
| 09 | Shaft seal | 45X58X7 | 1 | 24317519352 | $13.53 | Shop at ECS Tuning | ||||
| 10 | O-ring | 194X3 | 1 | 24317536355 | $7.33 | Shop at ECS Tuning | ||||
| 11 | Torx screw with round seal ring | M6X52 | 11 | 24317588743 | $1.95 | Shop at ECS Tuning | ||||
| 12 | O-ring | 128X3 | 1 | 24201217321 | $9.32 | Shop at ECS Tuning | ||||
| 13 | Shaft seal | 10X18X5 | 1 | 24147571213 | $5.20 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d GA6HP19Z housing with mounting parts?
- This technical diagram illustrates the GA6HP19Z housing with mounting parts within the Automatic transmission group for the 3 Series E90 320d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Vent cover (Part #24101422142).
- Which models use the hardware listed in this GA6HP19Z housing with mounting parts?
- The hardware and components featured in the GA6HP19Z housing with mounting parts are specific to the 3 Series E90 320d produced during 2007. These technical specifications ensure that parts like the Vent cover (24101422142) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6HP19Z housing with mounting parts assembly?
- Each item in the GA6HP19Z housing with mounting parts corresponds to the numbered list below the illustration. For the 3 Series E90 320d, you can identify the Vent cover by locating its position on the schematic, which then links to the official BMW part number 24101422142 for the Automatic transmission section.
