GA6HP19Z Mechatronics for BMW 3 Series E90 LCI 320d (2010)

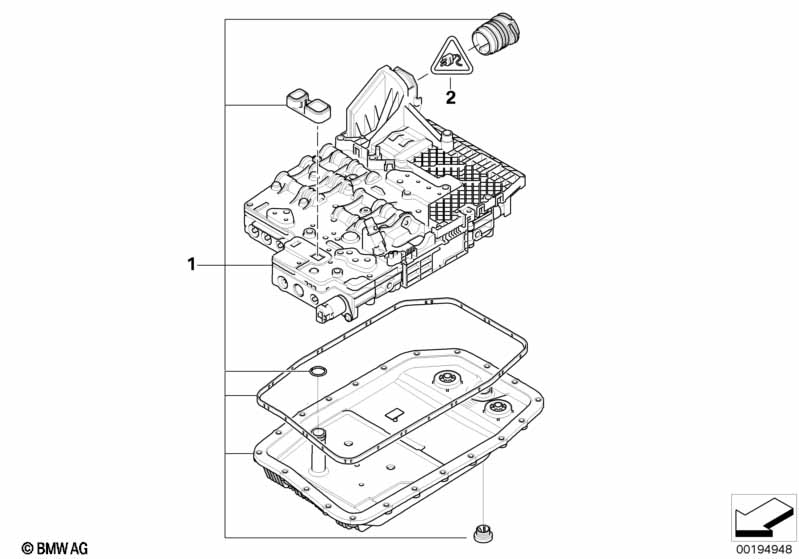

This GA6HP19Z Mechatronics technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | REMAN repair kit, mechatronics | REMAN | 1 | 24347647856 | Shop at ECS Tuning | |||||
| 01 | Repair kit, Mechatronic | 1 | 24348671613 | Shop at ECS Tuning | ||||||
| 01 | RP REMAN mechatronics | 1 | 24347571245 | $2919.27 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Socket housing | 1 | 12527503442 | $7.82 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35-0,5 MM² AG | 1 | 12521436205 | $0.50 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 0,5-1,0 MM² AG | 1 | 12521436206 | $0.50 | Shop at ECS Tuning | ||||
| -- | Protection cap | 1 | 12527522996 | $1.92 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d GA6HP19Z Mechatronics?
- This technical diagram illustrates the GA6HP19Z Mechatronics within the Automatic transmission group for the 3 Series E90 LCI 320d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the REMAN repair kit, mechatronics (Part #24347647856).
- Which models use the hardware listed in this GA6HP19Z Mechatronics?
- The hardware and components featured in the GA6HP19Z Mechatronics are specific to the 3 Series E90 LCI 320d produced during 2010. These technical specifications ensure that parts like the REMAN repair kit, mechatronics (24347647856) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6HP19Z Mechatronics assembly?
- Each item in the GA6HP19Z Mechatronics corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the REMAN repair kit, mechatronics by locating its position on the schematic, which then links to the official BMW part number 24347647856 for the Automatic transmission section.
