GA6HP19Z Mechatronics mounting parts for BMW 3 Series E93 LCI 320i (2013)

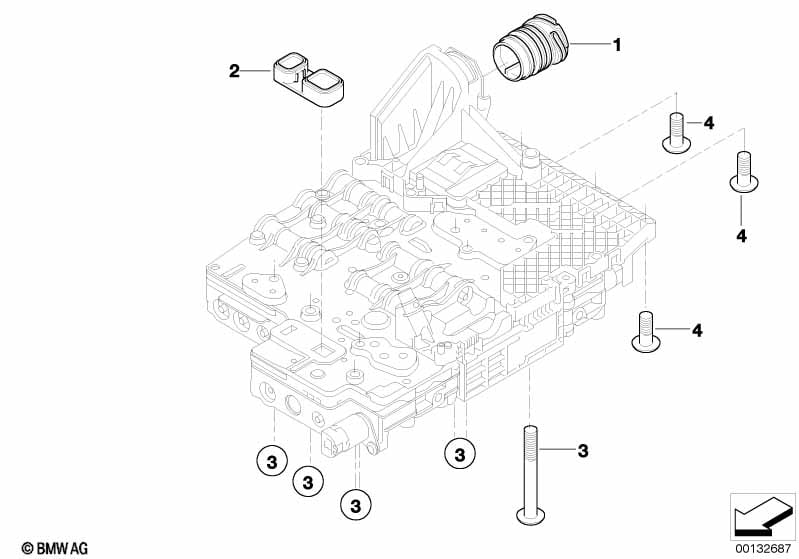

This GA6HP19Z Mechatronics mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sealing sleeve | 1 | 09/2010 | 24347588725 | $17.41 | Shop at ECS Tuning | ||||
| 02 | Adapter | 1 | 09/2010 | 24347588724 | $11.79 | Shop at ECS Tuning | ||||
| 03 | Torx screw | M6X59 | 10 | 09/2010 | 24347509514 | $1.80 | Shop at ECS Tuning | |||
| 04 | Torx screw | M6X20 | 3 | 09/2010 | 24347519356 | $1.80 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 LCI 320i GA6HP19Z Mechatronics mounting parts?
- This technical diagram illustrates the GA6HP19Z Mechatronics mounting parts within the Automatic transmission group for the 3 Series E93 LCI 320i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Sealing sleeve (Part #24347588725).
- Which models use the hardware listed in this GA6HP19Z Mechatronics mounting parts?
- The hardware and components featured in the GA6HP19Z Mechatronics mounting parts are specific to the 3 Series E93 LCI 320i produced during 2013. These technical specifications ensure that parts like the Sealing sleeve (24347588725) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6HP19Z Mechatronics mounting parts assembly?
- Each item in the GA6HP19Z Mechatronics mounting parts corresponds to the numbered list below the illustration. For the 3 Series E93 LCI 320i, you can identify the Sealing sleeve by locating its position on the schematic, which then links to the official BMW part number 24347588725 for the Automatic transmission section.
