Gearbox mounting parts for BMW 3 Series E93 320i (2010)

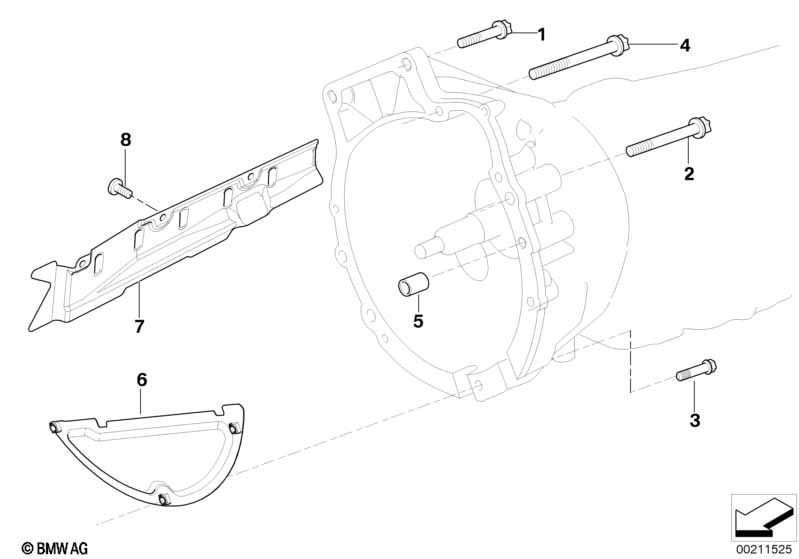

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X75 | 4 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X40 | 3 | 23007519717 | Shop at ECS Tuning | |||||
| 04 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Covering plate | 1 | 24007527724 | Shop at ECS Tuning | ||||||
| 07 | Heat resistant plate | 1 | 24007535232 | $12.13 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning |
