Emergency release for BMW 5 Series E60 LCI 520d (2009)

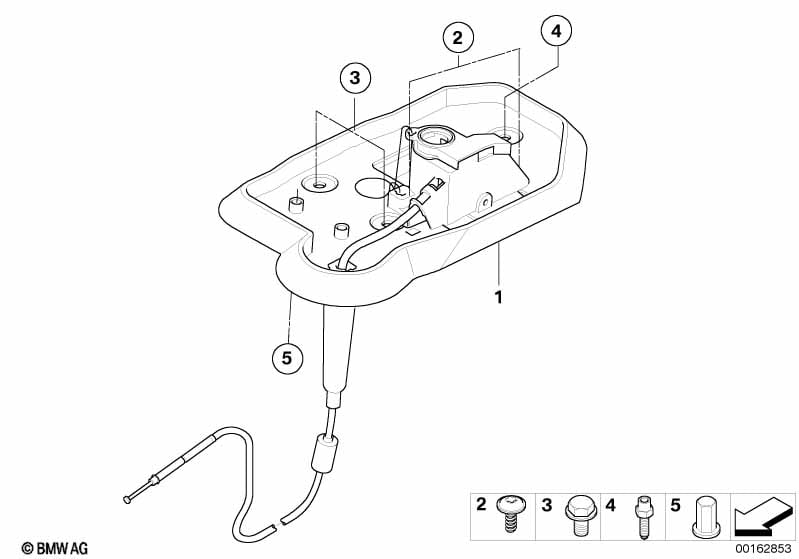

This Emergency release technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Emergency release | 1 | 06/2008 | 24507589212 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | 4X12MM | 2 | 07147122390 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X20-Z1 | 2 | 07119906246 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Spacer pin | 1 | 07149110285 | $1.54 | Shop at ECS Tuning | |||||
| 05 | Blind rivet nut, flat headed | M6 ZNNIV SI | 3 | 25167563407 | $0.39 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 520d Emergency release?
- This technical diagram illustrates the Emergency release within the Automatic transmission group for the 5 Series E60 LCI 520d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Emergency release (Part #24507589212).
- Which models use the hardware listed in this Emergency release?
- The hardware and components featured in the Emergency release are specific to the 5 Series E60 LCI 520d produced during 2009. These technical specifications ensure that parts like the Emergency release (24507589212) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emergency release assembly?
- Each item in the Emergency release corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 520d, you can identify the Emergency release by locating its position on the schematic, which then links to the official BMW part number 24507589212 for the Automatic transmission section.
