Gearbox mounting parts for BMW 5 Series E60 LCI 525d (2009)

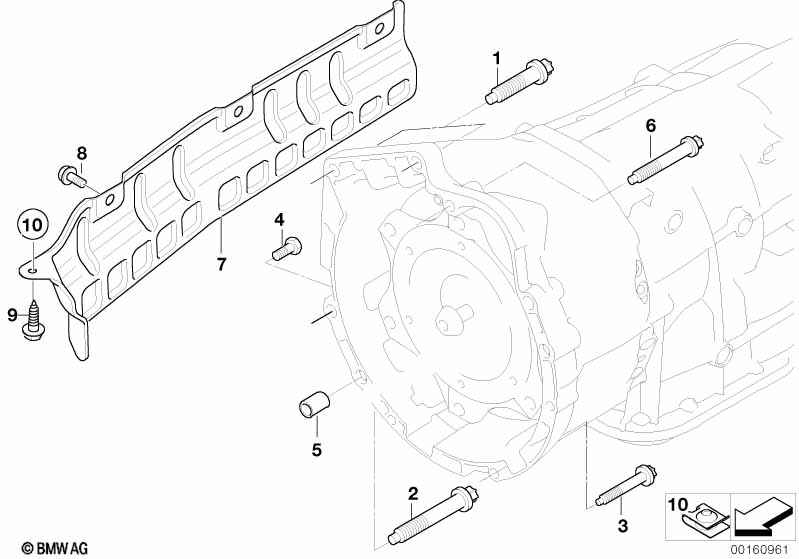

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 4 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable or Trailer coupling |
S235A=Yes S3ACA=Yes |
|||||||||
| 07 | Heat resistant plate | 1 | 24007568125 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex head screw with washer | ST4,8X16MM | 1 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4,8-16-ZNS3 | 1 | 07129904243 | $0.36 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 525d Gearbox mounting parts?
- This technical diagram illustrates the Gearbox mounting parts within the Automatic transmission group for the 5 Series E60 LCI 525d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222891).
- Which models use the hardware listed in this Gearbox mounting parts?
- The hardware and components featured in the Gearbox mounting parts are specific to the 5 Series E60 LCI 525d produced during 2009. These technical specifications ensure that parts like the Torx bolt (23001222891) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting parts assembly?
- Each item in the Gearbox mounting parts corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 525d, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222891 for the Automatic transmission section.
