Gearbox mounting for BMW 3 Series E90 LCI 320d (2010)

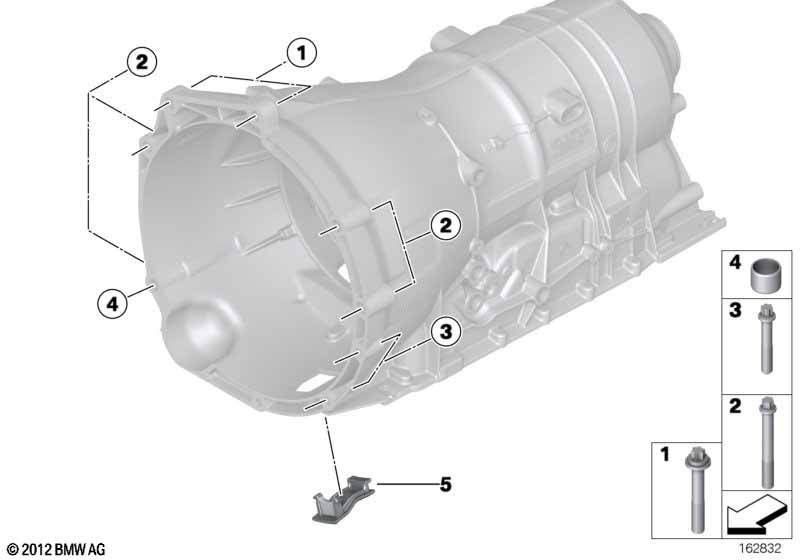

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X100-8.8ZNS3 | 4 | 23007565047 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Cap | 1 | 24147574787 | Shop at ECS Tuning |
