GA6HP26Z gearshift parts for BMW 5 Series E61 530xd (2007)

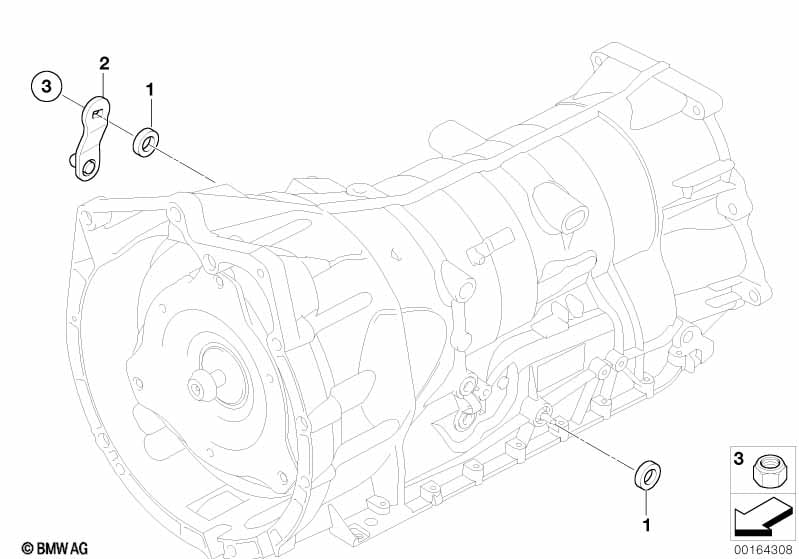

This GA6HP26Z gearshift parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 10X18X5 | 2 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 02 | Selector lever | 1 | 24147571244 | $12.18 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M8X1 | 1 | 24147571207 | $1.15 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 530xd GA6HP26Z gearshift parts?
- This technical diagram illustrates the GA6HP26Z gearshift parts within the Automatic transmission group for the 5 Series E61 530xd produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Shaft seal (Part #24147571213).
- Which models use the hardware listed in this GA6HP26Z gearshift parts?
- The hardware and components featured in the GA6HP26Z gearshift parts are specific to the 5 Series E61 530xd produced during 2007. These technical specifications ensure that parts like the Shaft seal (24147571213) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6HP26Z gearshift parts assembly?
- Each item in the GA6HP26Z gearshift parts corresponds to the numbered list below the illustration. For the 5 Series E61 530xd, you can identify the Shaft seal by locating its position on the schematic, which then links to the official BMW part number 24147571213 for the Automatic transmission section.
