GA6L45R Drive for BMW 3 Series E90 LCI 325i (2011)

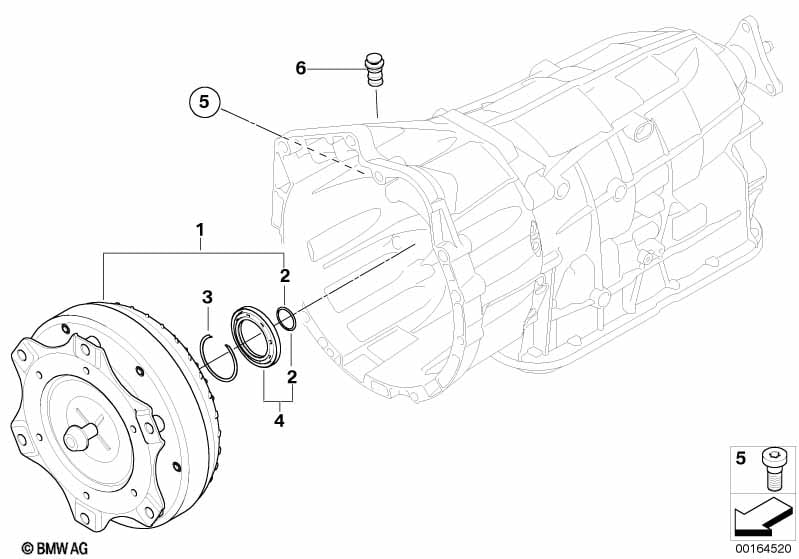

This GA6L45R Drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Control, transmission type |
S2TMA=Yes |
|||||||||
| 01 | Set, torque converter | R145TTD | 1 | 09/2010 | 24407596066 | $1922.80 | Shop at ECS Tuning | |||
| Set includes new air discharge - observe repair instructions. |
||||||||||
| 02 | O-ring | 1 | 09/2010 | 24127572601 | $2.27 | Shop at ECS Tuning | ||||
| 03 | Snap ring | 1 | 09/2010 | 24127572599 | $2.47 | Shop at ECS Tuning | ||||
| 04 | Set of converter seals | 1 | 09/2010 | 24107581595 | $85.41 | Shop at ECS Tuning | ||||
| 05 | Screw plug | 1 | 09/2010 | 24147572602 | $6.54 | Shop at ECS Tuning | ||||
| 06 | Blind plug | 1 | 09/2010 | 24107572627 | $9.38 | Shop at ECS Tuning | ||||
