GA6L45R oil pan for BMW 3 Series E90 LCI 325i (2011)
This GA6L45R oil pan technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Control, transmission type |
S2TMA=Yes |
|||||||||
| 01 | Kit, oil pan | 1 | 09/2010 | 24117581605 | $256.19 | Shop at ECS Tuning | ||||
| 02 | Gasket, oil pan | 1 | 09/2010 | 24117572618 | $50.13 | Shop at ECS Tuning | ||||
| 03 | Magnet | 1 | 09/2010 | 24117572619 | $1.98 | Shop at ECS Tuning | ||||
| 04 | Set oil filter | 1 | 09/2010 | 24117593565 | $57.50 | Shop at ECS Tuning | ||||
| 05 | Set of 6-point bolts | M6X19 | 1 | 09/2010 | 24117581606 | $13.25 | Shop at ECS Tuning | |||

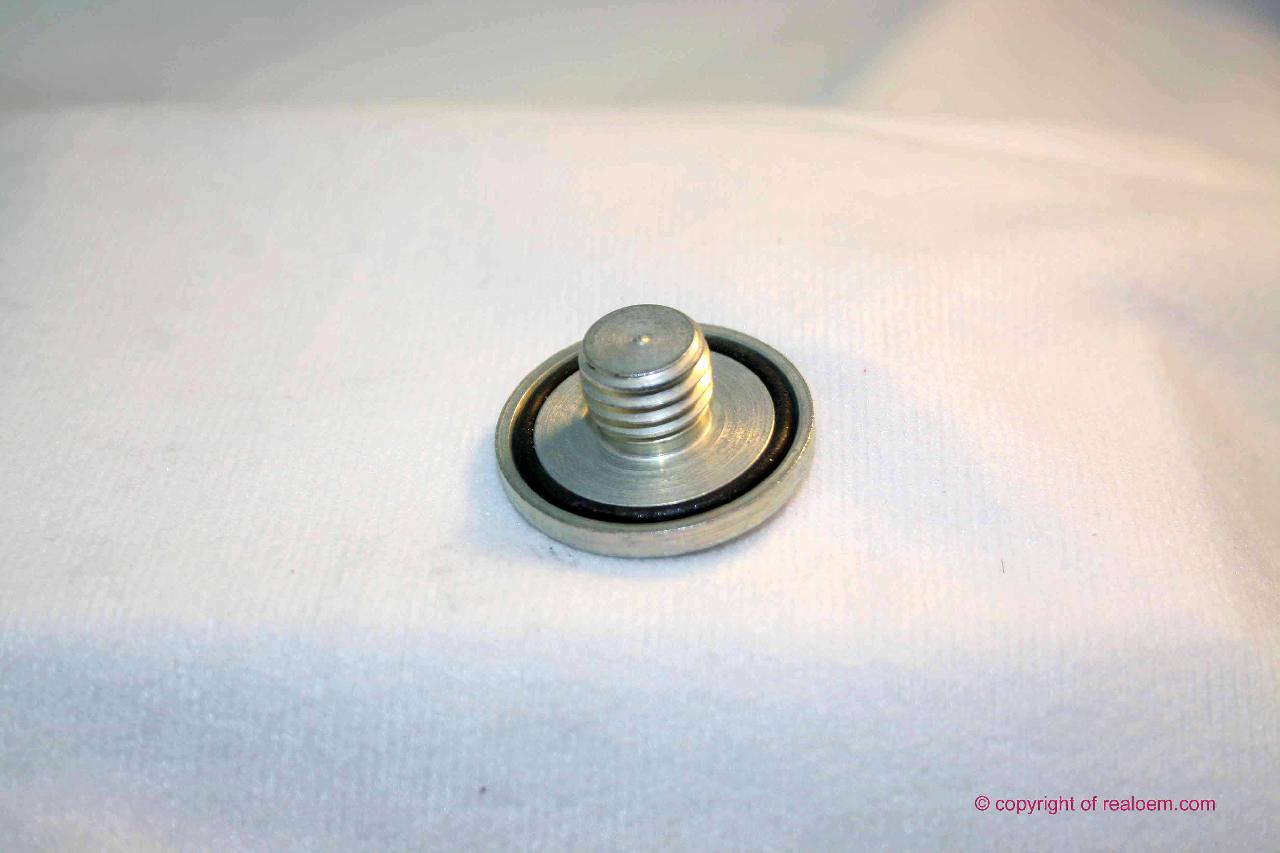

| 06 | Oil drain plug | 1 | 09/2010 | 24117572622 | $2.08 | Shop at ECS Tuning | ||||
| 07 | Screw plug, outer hexagon | 1 | 09/2010 | 24117507787 | $10.51 | Shop at ECS Tuning | ||||
