GA6L45R gearshift for BMW 3 Series E90 LCI 330i (2011)

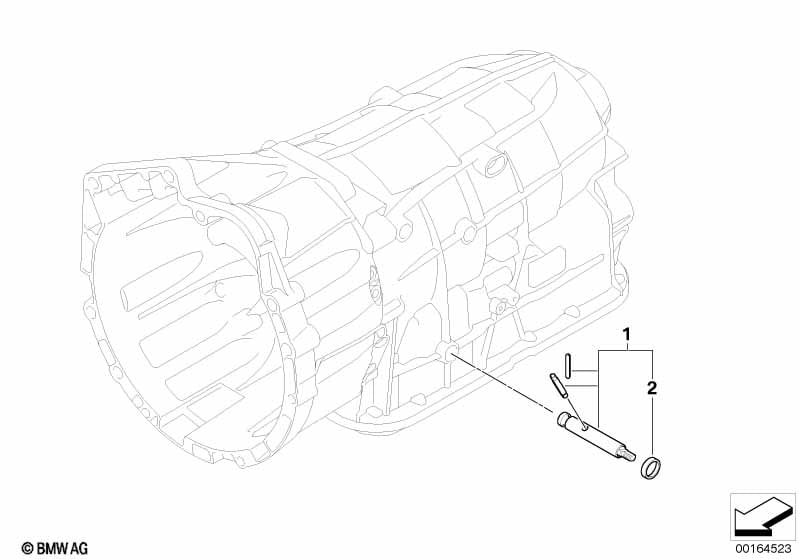

This GA6L45R gearshift technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Control, transmission type |
S2TMA=Yes |
|||||||||
| 01 | Set, selector shaft | 1 | 09/2010 | 24507581596 | $64.14 | Shop at ECS Tuning | ||||
| 02 | Shaft seal | 11X19X5 | 1 | 09/2010 | 24277572606 | $3.64 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 330i GA6L45R gearshift?
- This technical diagram illustrates the GA6L45R gearshift within the Automatic transmission group for the 3 Series E90 LCI 330i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Set, selector shaft (Part #24507581596).
- Which models use the hardware listed in this GA6L45R gearshift?
- The hardware and components featured in the GA6L45R gearshift are specific to the 3 Series E90 LCI 330i produced during 2011. These technical specifications ensure that parts like the Set, selector shaft (24507581596) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6L45R gearshift assembly?
- Each item in the GA6L45R gearshift corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 330i, you can identify the Set, selector shaft by locating its position on the schematic, which then links to the official BMW part number 24507581596 for the Automatic transmission section.
