Automatic transmiss. GA6HP19Z - 4-wheel for BMW 3 Series E92 LCI 320xd (2013)

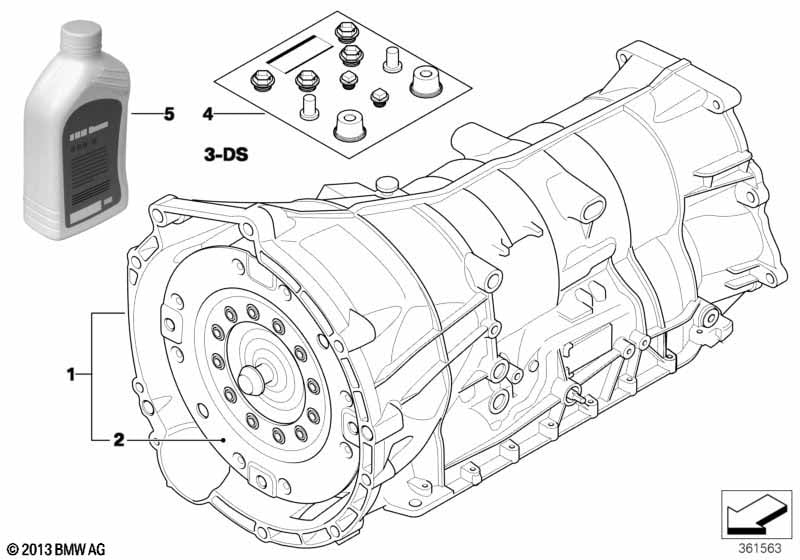

This Automatic transmiss. GA6HP19Z - 4-wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 320xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP automatic transmission, Eh | GA6HP19Z - WCG | 1 | 07/2011 | 24007630970 | +core, NoS | Shop at ECS Tuning | |||
| 01 | RP REMAN automatic transmission Eh | GA6HP19Z | 1 | 07/2011 | 24007630971 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M10X17,5Z1-10.9 | 6 | 07/2011 | 24407561393 | $1.68 | Shop at ECS Tuning | |||
| 02 | Torque converter | S126 | 1 | 24407588746 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M10X17,5Z1-10.9 | 6 | 24407561393 | $1.68 | Shop at ECS Tuning | ||||
| 03 | Gasket set | 1 | 24277583125 | $186.98 | Shop at ECS Tuning | |||||
| 04 | Set, blind plugs | 1 | 24107604970 | Shop at ECS Tuning | ||||||
| 05 | ATF 2 | 1L | X | 01/2023 | 83222305396 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| 05 | Automatic transmission oil ATF 2 | 1L | X | 83225A92866 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
