GA8HP90Z Mechatronics for BMW 7 Series F02 LCI 760Li (2015)

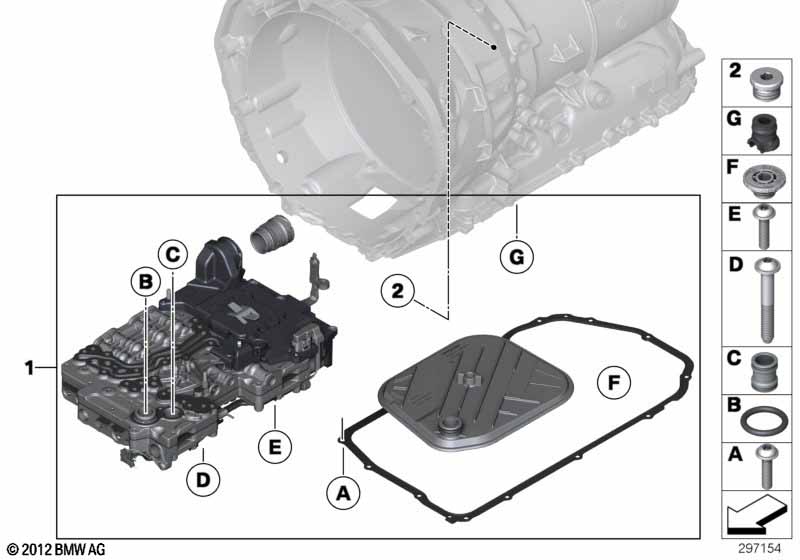

This GA8HP90Z Mechatronics technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP repair kit, mechatronics | 1 | 24348612900 | Shop at ECS Tuning | ||||||
| 01 | RP REMAN repair kit for mechatronics | 1 | 24348687817 | Shop at ECS Tuning | ||||||
| 02 | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 760Li GA8HP90Z Mechatronics?
- This technical diagram illustrates the GA8HP90Z Mechatronics within the Automatic transmission group for the 7 Series F02 LCI 760Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the RP repair kit, mechatronics (Part #24348612900).
- Which models use the hardware listed in this GA8HP90Z Mechatronics?
- The hardware and components featured in the GA8HP90Z Mechatronics are specific to the 7 Series F02 LCI 760Li produced during 2015. These technical specifications ensure that parts like the RP repair kit, mechatronics (24348612900) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8HP90Z Mechatronics assembly?
- Each item in the GA8HP90Z Mechatronics corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 760Li, you can identify the RP repair kit, mechatronics by locating its position on the schematic, which then links to the official BMW part number 24348612900 for the Automatic transmission section.
