Gearbox mounting for BMW 5 Series F10 528i (2011)

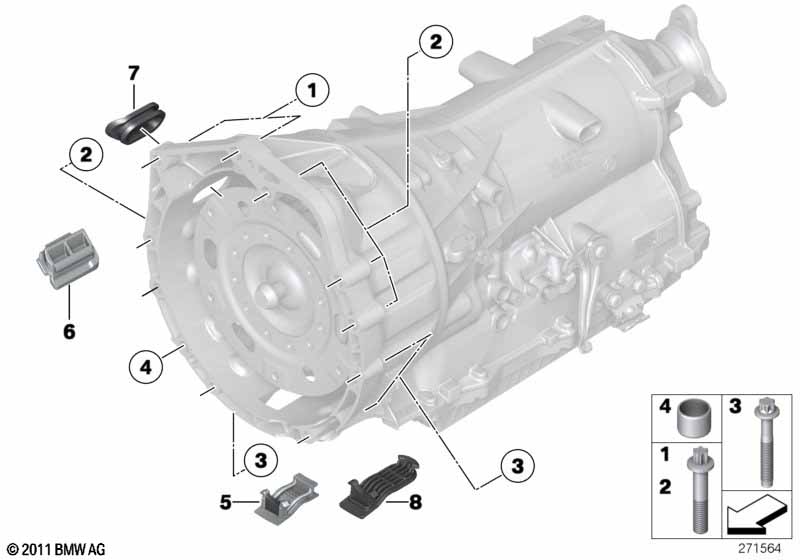

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 02 | Set alu. screws automatic transmission | 1 | 24000392608 | $8.29 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Cap | 1 | 24147567139 | $10.60 | Shop at ECS Tuning | |||||
| 06 | Cap | 1 | 24147603258 | Shop at ECS Tuning | ||||||
| 07 | Cap | 1 | 24147619174 | Shop at ECS Tuning | ||||||
| 08 | Cap | 1 | 24147619175 | Shop at ECS Tuning | ||||||
