Automatic transmission GA8HP45Z for BMW 5 Series F10 525d

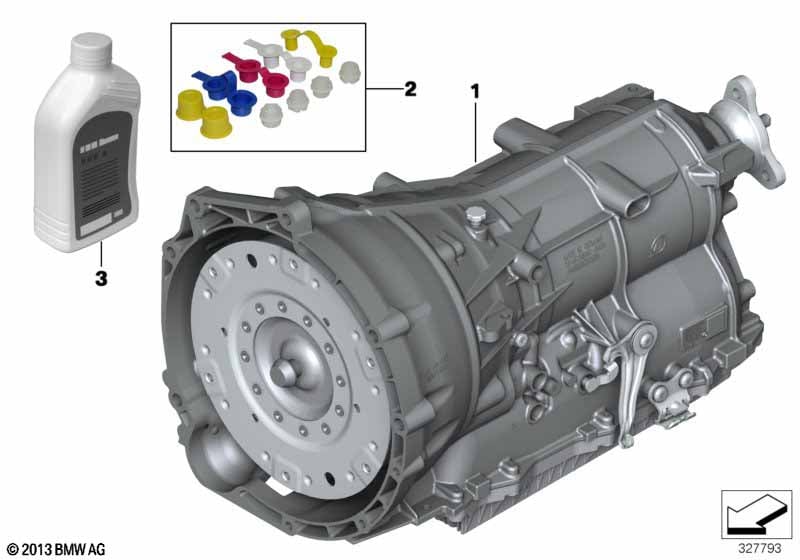

This Automatic transmission GA8HP45Z technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP automatic transmission, Eh | GA8HP45Z - WZI | 1 | 06/2010 | 24008617281 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | RP REMAN automatic transmission Eh | GA8HP45Z | 1 | 06/2010 | 24007605007 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M10X17,5Z1-10.9 | 6 | 06/2010 | 24407561393 | $1.68 | Shop at ECS Tuning | |||
| 01 | RP REMAN automatic transmission Eh | GA8HP45Z | 1 | 06/2010 | 24007626002 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M10X17,5Z1-10.9 | 6 | 06/2010 | 24407561393 | $1.68 | Shop at ECS Tuning | |||
| 01 | RP automatic transmission, Eh | GA8HP45Z - WZK | 1 | 03/2011 | 03/2012 | 24008617283 | NoS | Shop at ECS Tuning | ||
| 02 | Set, blind plugs | 1 | 24107604970 | Shop at ECS Tuning | ||||||
| 03 | Automatic transmission fluid 3+ | 1L | X | 83225A12A00 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
