A5S560Z parking lock for BMW 7 Series E32 740iL (1994)

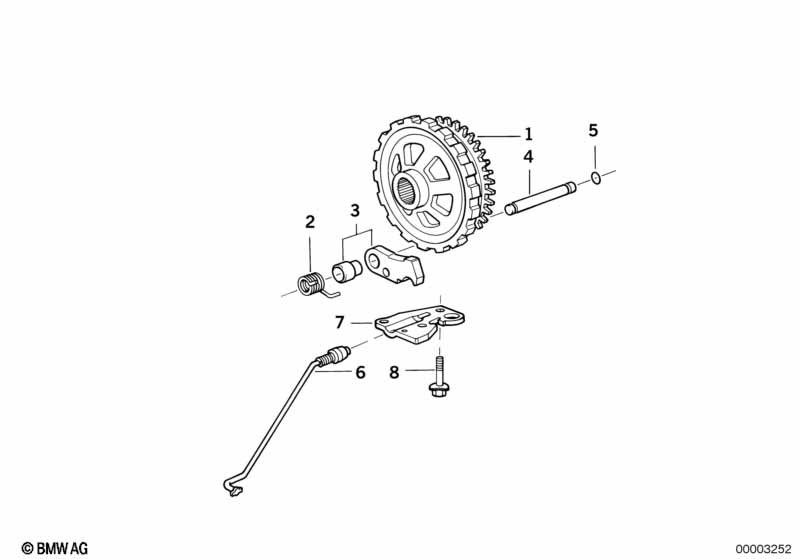

This A5S560Z parking lock technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Parking lock wheel | 1 | 24531421161 | $177.75 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
| 02 | Return spring | 1 | 24531421703 | $4.05 | Shop at ECS Tuning | |||||
| 03 | Pawl | 1 | 24531421159 | $72.13 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pin | 1 | 24531421158 | $3.08 | ENDED | Shop at ECS Tuning | ||||
| 05 | O-ring | 1 | 24531421144 | $0.73 | Shop at ECS Tuning | |||||
| 06 | Connection rod | 1 | 24531421162 | $32.03 | Shop at ECS Tuning | |||||
| 07 | Guide plate | 1 | 24531421166 | $12.75 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X25-Z3 | 3 | 24531421167 | $2.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
