A5S560Z drive clutch A/B/C for BMW 7 Series E32 740i (1994)

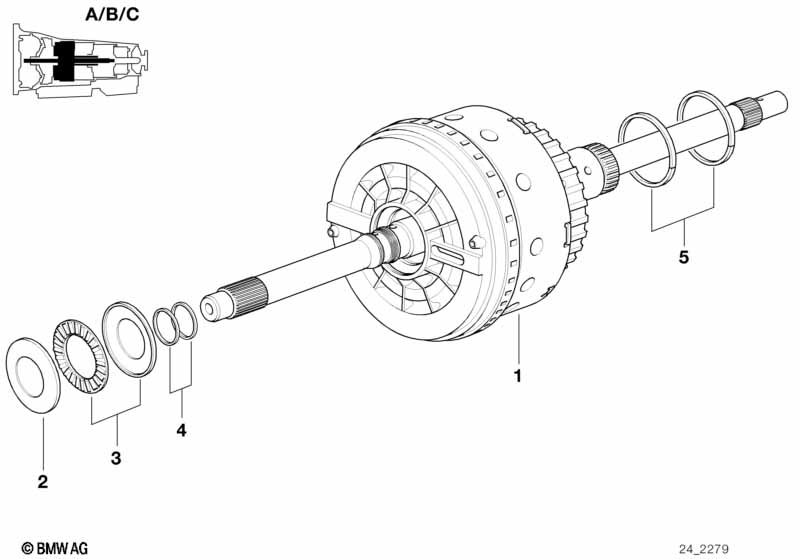

This A5S560Z drive clutch A/B/C technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clutch A/B/C | 1 | 24231421526 | $6115.68 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24271421792 | $18.81 | Shop at ECS Tuning | |||||
| 02 | Set of adjusting plates | 1 | 24271421792 | $18.81 | Shop at ECS Tuning | |||||
| 03 | AX bearing | 1 | 24317503471 | $11.67 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24271421792 | $18.81 | Shop at ECS Tuning | |||||
| 04 | Rectangring | 2 | 24231421565 | $12.91 | Shop at ECS Tuning | |||||
| 05 | Rectangring | 2 | 24231422387 | $12.91 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
