A5S560Z transmission housing for BMW 7 Series E32 740iL (1994)

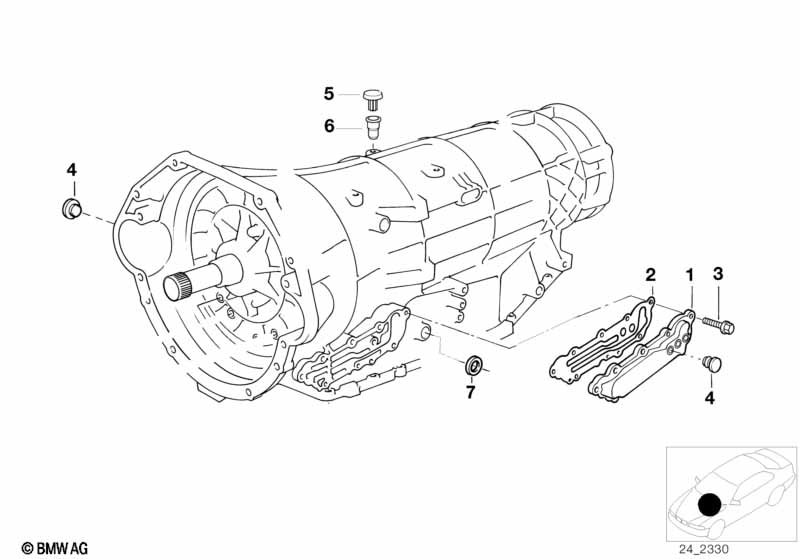

This A5S560Z transmission housing technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 24101421149 | $119.46 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 24101421138 | $7.70 | Shop at ECS Tuning | |||||
| 03 | Hexagon bolt | M6X20 | 9 | 24105A67389 | Shop at ECS Tuning | |||||
| 04 | Screw Plug With Gasket Ring | M10X1 | 3 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
| 05 | Vent cover | 1 | 24101422142 | $1.95 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Vent pipe | 1 | 24101422141 | $5.93 | Shop at ECS Tuning | |||||
| 06 | Vent pipe | 1 | 24101422141 | $5.93 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Vent cover | 1 | 24101422142 | $1.95 | Shop at ECS Tuning | |||||
| 07 | Shaft seal | 10X18X5 | 2 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740iL A5S560Z transmission housing?
- This technical diagram illustrates the A5S560Z transmission housing within the Automatic transmission group for the 7 Series E32 740iL produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #24101421149).
- Which models use the hardware listed in this A5S560Z transmission housing?
- The hardware and components featured in the A5S560Z transmission housing are specific to the 7 Series E32 740iL produced during 1994. These technical specifications ensure that parts like the Cover (24101421149) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S560Z transmission housing assembly?
- Each item in the A5S560Z transmission housing corresponds to the numbered list below the illustration. For the 7 Series E32 740iL, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 24101421149 for the Automatic transmission section.
