Gearbox mounting for BMW 5 Series F11 LCI 535iX (2017)

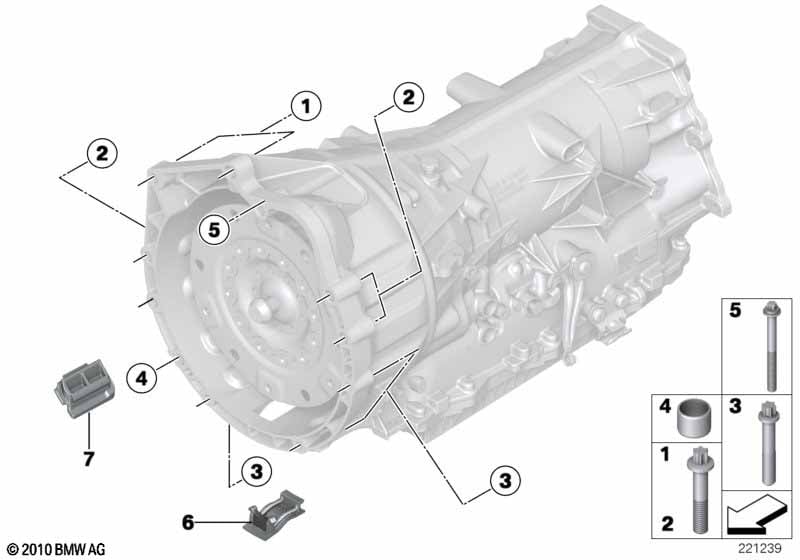

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 535iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| or | ||||||||||
| 02 | Torx bolt | M12X75 | 5 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 06 | Cap | 1 | 24147567139 | $10.60 | Shop at ECS Tuning | |||||
| 07 | Cap | 1 | 24147603258 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F11 LCI 535iX Gearbox mounting?
- This technical diagram illustrates the Gearbox mounting within the Automatic transmission group for the 5 Series F11 LCI 535iX produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222891).
- Which models use the hardware listed in this Gearbox mounting?
- The hardware and components featured in the Gearbox mounting are specific to the 5 Series F11 LCI 535iX produced during 2017. These technical specifications ensure that parts like the Torx bolt (23001222891) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting assembly?
- Each item in the Gearbox mounting corresponds to the numbered list below the illustration. For the 5 Series F11 LCI 535iX, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222891 for the Automatic transmission section.
