Gearbox mounting parts for BMW 5 Series F10 LCI 550iX (2016)

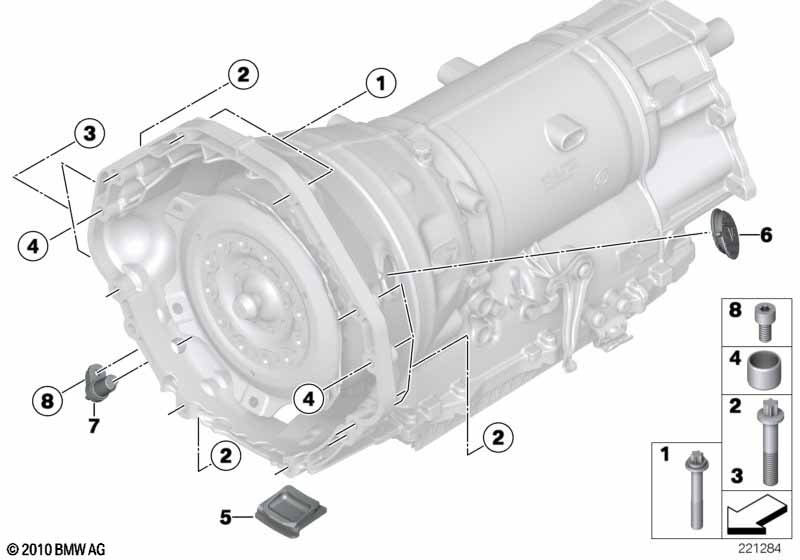

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 550iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ASA-Bolt | M8X50-8.8-ZNS3 | 2 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M10X55-8.8 ZNS3 | 8 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M10X55-8.8 ZNS3 | 2 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Cap | 1 | 24001422960 | $2.67 | Shop at ECS Tuning | |||||
| 06 | Cap | 1 | 24147590118 | Shop at ECS Tuning | ||||||
| 07 | Crankshaft sensor | 1 | 13627628741 | Shop at ECS Tuning | ||||||
| 08 | Star-socket screw | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning |
