GA6HP26Z gearshift parts for BMW 7 Series F02 730Li (2012)

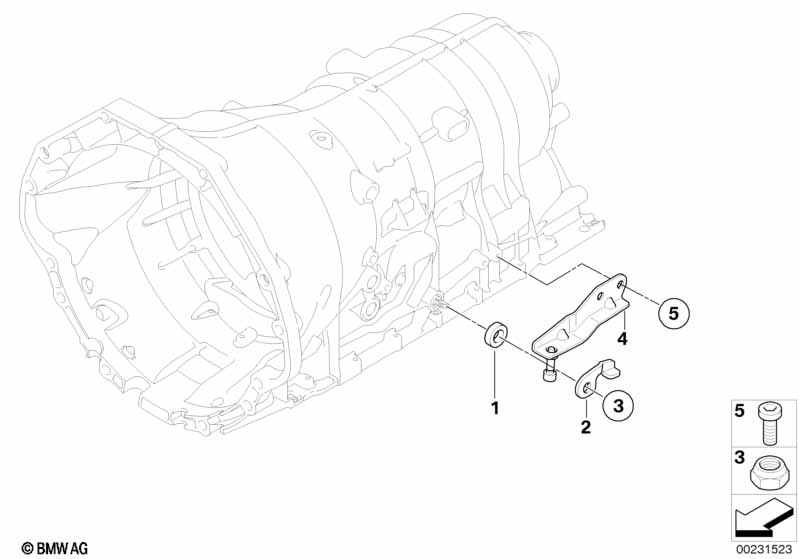

This GA6HP26Z gearshift parts technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 10X18X5 | 1 | 03/2010 | 24147571213 | $5.20 | Shop at ECS Tuning | |||
| 02 | Lever | 1 | 03/2010 | 24147588757 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M8X1 | 1 | 03/2010 | 24147571207 | $1.15 | Shop at ECS Tuning | |||
| 04 | Support | 1 | 03/2010 | 24147588758 | Shop at ECS Tuning | |||||
| 05 | Torx screw | M6X14 | 2 | 03/2010 | 24147515904 | $1.77 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 730Li GA6HP26Z gearshift parts?
- This technical diagram illustrates the GA6HP26Z gearshift parts within the Automatic transmission group for the 7 Series F02 730Li produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Shaft seal (Part #24147571213).
- Which models use the hardware listed in this GA6HP26Z gearshift parts?
- The hardware and components featured in the GA6HP26Z gearshift parts are specific to the 7 Series F02 730Li produced during 2012. These technical specifications ensure that parts like the Shaft seal (24147571213) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6HP26Z gearshift parts assembly?
- Each item in the GA6HP26Z gearshift parts corresponds to the numbered list below the illustration. For the 7 Series F02 730Li, you can identify the Shaft seal by locating its position on the schematic, which then links to the official BMW part number 24147571213 for the Automatic transmission section.
