Automatic transmission GA8HP45Z - AWD for BMW 5 Series F10 LCI 520dX (2014)

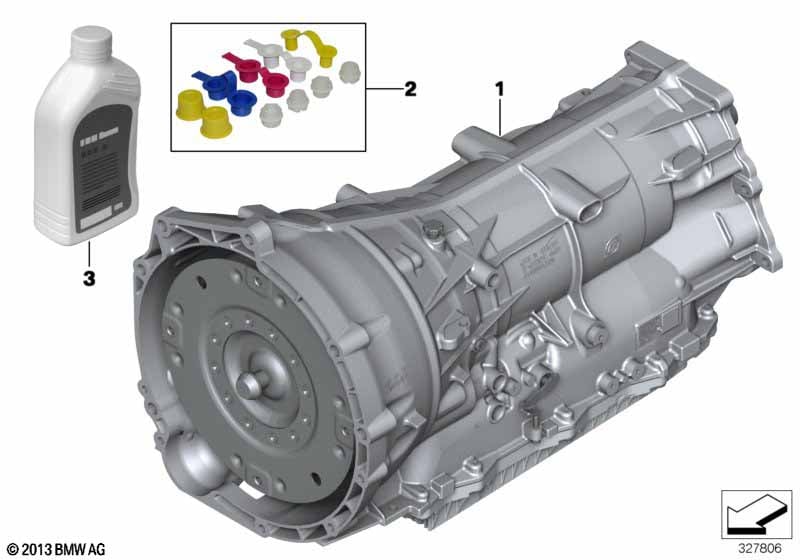

This Automatic transmission GA8HP45Z - AWD technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP automatic transmission, Eh | GA8HP45X - ZBA | 1 | 24008638275 | Shop at ECS Tuning | |||||
| 01 | RP REMAN automatic transmission Eh | GA8HP45X | 1 | 24008615609 | Shop at ECS Tuning | |||||
| 02 | Set, blind plugs | 1 | 24107604970 | Shop at ECS Tuning | ||||||
| 03 | Automatic transmission fluid 3+ | 1L | X | 83225A12A00 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
