Gearbox mounting parts for BMW 4 Series F36 Gran Coupé 420iX (2016)

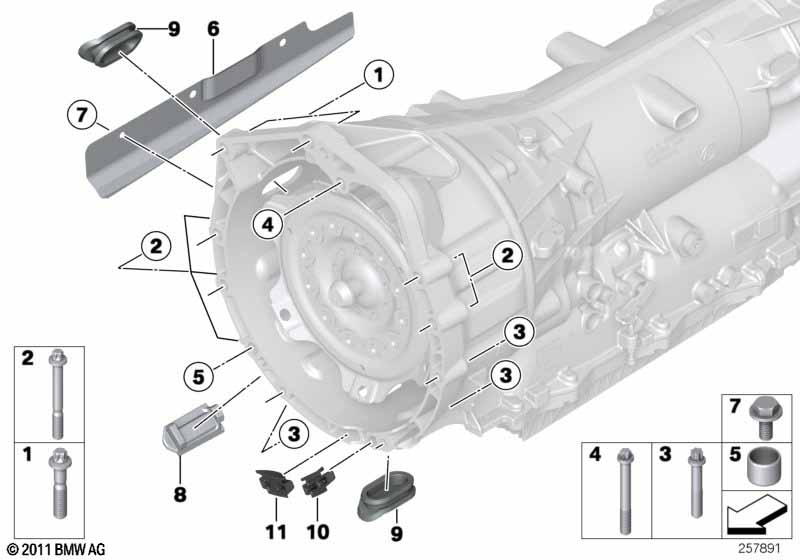

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé 420iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ASA-Bolt | M10X50 ZNS3 | 2 | 23007603854 | Shop at ECS Tuning | |||||
| 02 | ASA-Bolt | M10X75 ZNS3 | 5 | 23007603856 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Heat resistant plate | 1 | 24147644617 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Cap | 1 | 24147603258 | Shop at ECS Tuning | ||||||
| 09 | Cap | 2 | 24147619174 | Shop at ECS Tuning | ||||||
| 10 | Cap | 1 | 24147627513 | Shop at ECS Tuning | ||||||
| 11 | Cap | 1 | 24147627514 | Shop at ECS Tuning |
