A5S560Z output for BMW 8 Series E31 840i (1996)

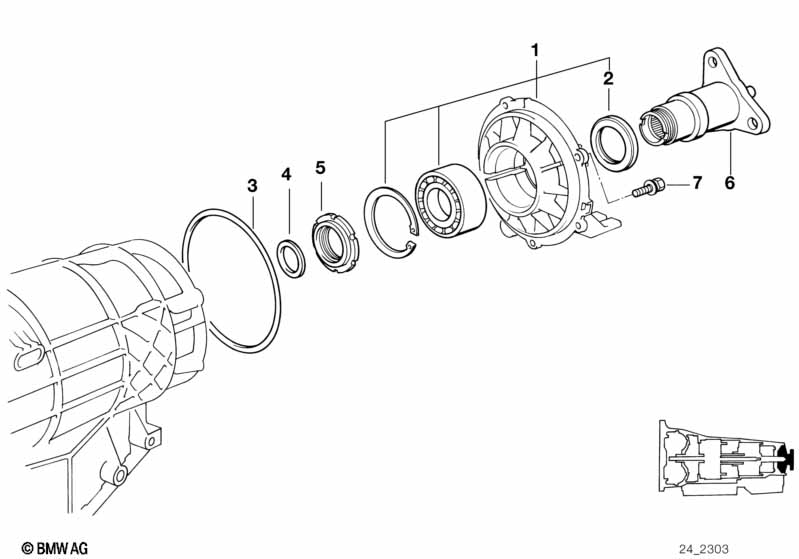

This A5S560Z output technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive extension | 1 | 24131422520 | $257.73 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 57X73X8 | 1 | 24131422667 | $20.23 | Shop at ECS Tuning | ||||
| 03 | O-ring | 1 | 24131421143 | $9.32 | Shop at ECS Tuning | |||||
| 04 | Set of adjusting plates | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
| 05 | Ring nut | 1 | 24201421170 | $20.93 | Shop at ECS Tuning | |||||
| 06 | Output flange | 1 | 24201422521 | $420.36 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X25-Z3 | 5 | 24531421167 | $2.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840i A5S560Z output?
- This technical diagram illustrates the A5S560Z output within the Automatic transmission group for the 8 Series E31 840i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Drive extension (Part #24131422520).
- Which models use the hardware listed in this A5S560Z output?
- The hardware and components featured in the A5S560Z output are specific to the 8 Series E31 840i produced during 1996. These technical specifications ensure that parts like the Drive extension (24131422520) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S560Z output assembly?
- Each item in the A5S560Z output corresponds to the numbered list below the illustration. For the 8 Series E31 840i, you can identify the Drive extension by locating its position on the schematic, which then links to the official BMW part number 24131422520 for the Automatic transmission section.
