GA6HP26Z housing with mounting parts for BMW 7 Series F01 740d (2012)

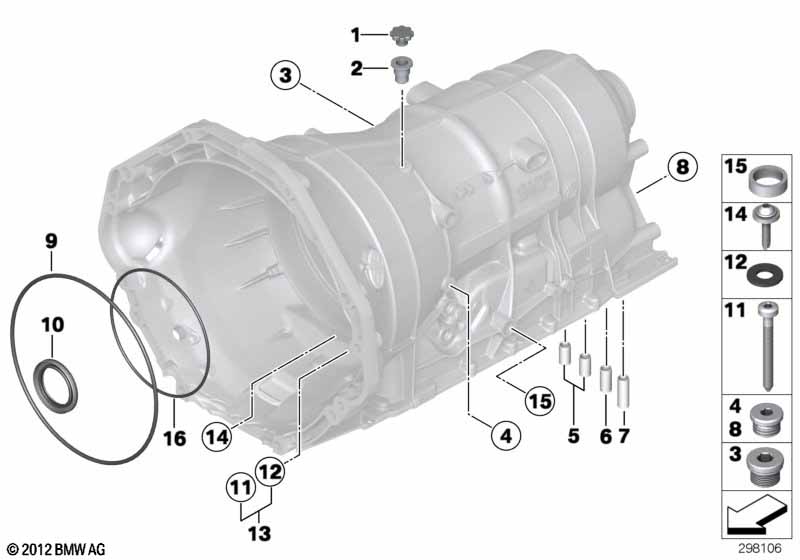

This GA6HP26Z housing with mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent cover | 1 | 24101422142 | $1.95 | Shop at ECS Tuning | |||||
| 02 | Vent pipe | 1 | 24101422141 | $5.93 | Shop at ECS Tuning | |||||
| 03 | Screw Plug With Gasket Ring | M18X1,5 | 1 | 24117552349 | $7.65 | Shop at ECS Tuning | ||||
| 04 | Screw Plug With Gasket Ring | M10X1 | 1 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
| 05 | Sealing sleeve | L=25,9MM | 2 | 24107519314 | $5.33 | Shop at ECS Tuning | ||||
| 06 | Sealing sleeve | L=31,4MM | 1 | 24107519315 | $5.33 | Shop at ECS Tuning | ||||
| 07 | Sealing sleeve | L=40,7MM | 1 | 24107520715 | $6.05 | Shop at ECS Tuning | ||||
| 08 | Screw Plug With Gasket Ring | M12X1,5 | 1 | 24117552350 | $6.35 | Shop at ECS Tuning | ||||
| 09 | O-ring | 210X3 | 1 | 24311219166 | $10.24 | Shop at ECS Tuning | ||||
| 10 | Shaft seal | 45X58X7 | 1 | 24317519352 | $13.53 | Shop at ECS Tuning | ||||
| 13 | Torx screw with round seal ring | M6X52 | 13 | 24317588743 | $1.95 | Shop at ECS Tuning | ||||
| 14 | Torx screw with round seal ring | M6X22 | 1 | 24317588744 | Shop at ECS Tuning | |||||
| 15 | Shaft seal | 10X18X5 | 1 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 16 | O-ring | 128X3 | 1 | 24201217321 | $9.32 | Shop at ECS Tuning |
