Fluid-change kit, autom. transmission for BMW 5 Series E39 528i (2000)

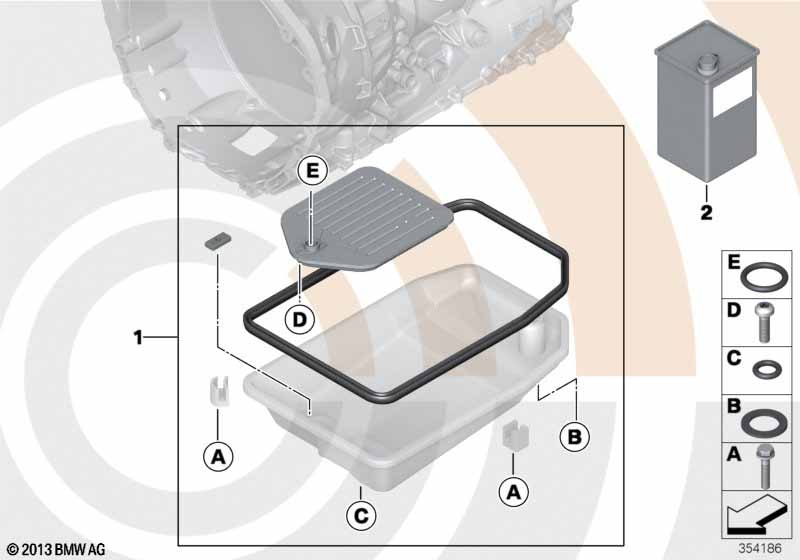

This Fluid-change kit, autom. transmission technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For transmission with green data plate | ||||||||||
| 02 | ATF 4 | 1L | X | 83222344206 | Shop at ECS Tuning | |||||
| Important! It is vital to observe the oil balancing procedure described in the repair instructions. The required oil quantity can vary! |
||||||||||
| For transmission with black data plate | ||||||||||
| 02 | BMW automatic transmission fluid D 2 | 1L | X | 81229400272 | Shop at ECS Tuning | |||||
| Important! It is vital to observe the oil balancing procedure described in the repair instructions. The required oil quantity can vary! |
||||||||||
