GA6F21AW mounted parts/seals for BMW MINI Cabrio F57 JCW (2019)

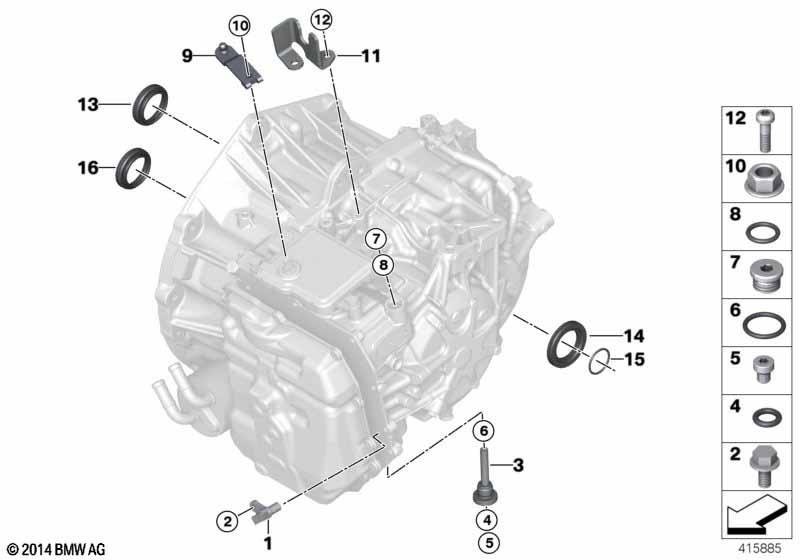

This GA6F21AW mounted parts/seals technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission or Sport transmission w/ dual-plate clutch or Steptronic with twin-clutch gearbox |
S205A=Yes S2TCA=Yes S2TFA=Yes |
||||||||
| 01 | Rotational-speed sensor | 1 | 24628627855 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M6X14 | 1 | 24608627856 | Shop at ECS Tuning | |||||
| -- | Oil Pan | 1 | 24118627787 | Shop at ECS Tuning | ||||||
| -- | Hex bolt | M8X15,5 | 1 | 24108627788 | Shop at ECS Tuning | |||||
| 02 | Screw | M6X14 | 1 | 24608627856 | Shop at ECS Tuning | |||||
| 03 | Overflow pipe | M20X1,5 | 1 | 24108627866 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 18 X 2,4 | 1 | 24278627913 | Shop at ECS Tuning | |||||
| 04 | O-ring | 6,1 X 1,8 | 1 | 24278627907 | Shop at ECS Tuning | |||||
| 05 | Screw plug | M8X1 | 1 | 24108627912 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 6,1 X 1,8 | 1 | 24278627907 | Shop at ECS Tuning | |||||
| 06 | O-ring | 18 X 2,4 | 1 | 24278627913 | Shop at ECS Tuning | |||||
| 07 | Screw plug | M18X1,5 | 1 | 24108627914 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 15,5X2,2 | 1 | 24278627917 | Shop at ECS Tuning | |||||
| 08 | O-ring | 15,5X2,2 | 1 | 24278627917 | Shop at ECS Tuning | |||||
| 09 | Transmission shift lever | 1 | 24518627918 | Shop at ECS Tuning | ||||||
| 10 | Hex nut | M8X1,25 | 1 | 24508627919 | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 24508647249 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx bolt | M8X27 | 1 | 24608647250 | Shop at ECS Tuning | |||||
| 12 | Torx bolt | M8X27 | 2 | 11/2014 | 24608647250 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Holder | X | 11/2014 | 24508647249 | Shop at ECS Tuning | |||||
| 13 | Shaft seal | 55X38X10 | 1 | 24278627785 | Shop at ECS Tuning | |||||
| 14 | Shaft oil seal, driveshaft | 63X39X11 | 1 | 03/2015 | 24278647245 | Shop at ECS Tuning | ||||
| 15 | O-ring | 31,7X2,6 | 2 | 24277551100 | $2.33 | Shop at ECS Tuning | ||||
| 16 | Shaft oil seal, driveshaft | 55X37X6 | 1 | 24278627784 | Shop at ECS Tuning | |||||
