Gearbox mounting parts for BMW MINI Clubman F54 Cooper (2019)

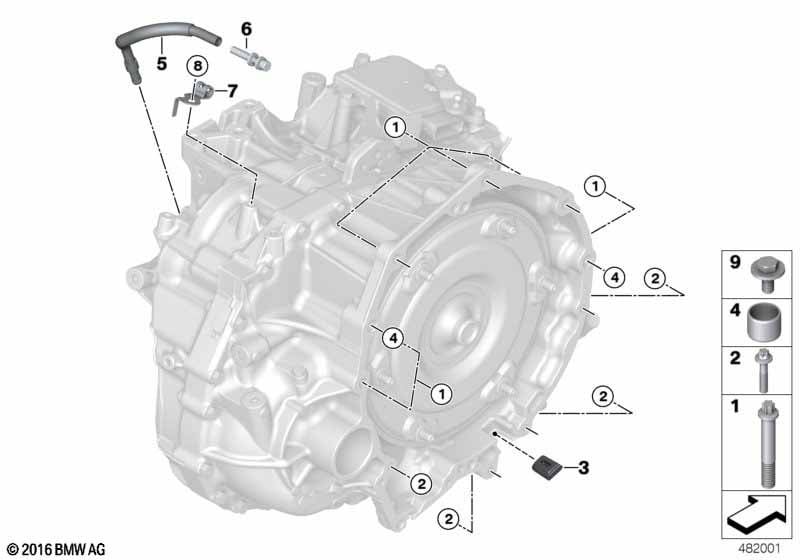

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission or Sport transmission w/ dual-plate clutch or Steptronic with twin-clutch gearbox |
S205A=Yes S2TCA=Yes S2TFA=Yes |
||||||||
| 01 | Torx bolt | M12X75 | 6 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Star-socket screw | BM8X40-8.8-ZNNI | 4 | 07119907836 | Shop at ECS Tuning | |||||
| 03 | Cap | 1 | 23008612907 | Shop at ECS Tuning | ||||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Vent pipe | 1 | 24148627925 | Shop at ECS Tuning | ||||||
| 06 | Breather | 1 | 24148627924 | Shop at ECS Tuning | ||||||
| 07 | Bracket breather pipe | 1 | 24148627927 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M8X17 | 1 | 24148627928 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Gearbox mounting parts?
- This technical diagram illustrates the Gearbox mounting parts within the Automatic transmission group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222893).
- Which models use the hardware listed in this Gearbox mounting parts?
- The hardware and components featured in the Gearbox mounting parts are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the Torx bolt (23001222893) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting parts assembly?
- Each item in the Gearbox mounting parts corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222893 for the Automatic transmission section.
