GA8F22AW valve body and mounted parts for BMW 2 Series F46 Gran Tourer 218dX (2018)

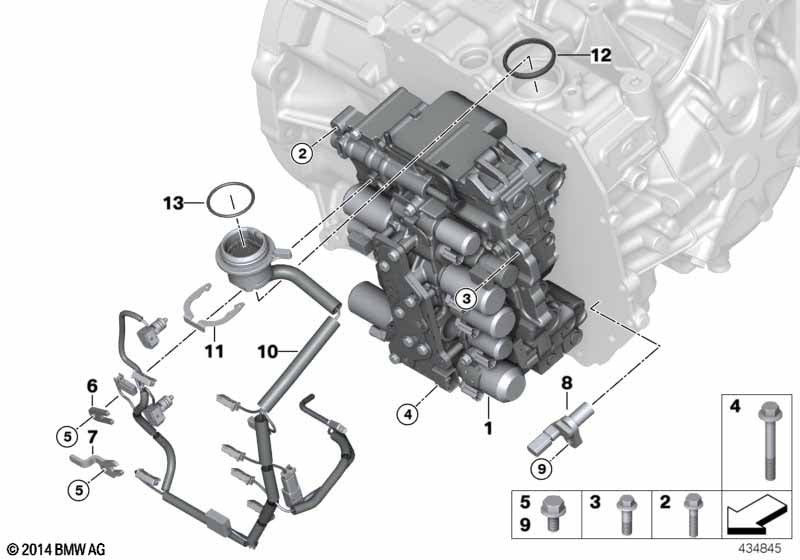

This GA8F22AW valve body and mounted parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 218dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit | 1 | 24008642390 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Oil Pan | 1 | 24118627787 | Shop at ECS Tuning | ||||||
| -- | Hex bolt | M8X15,5 | 13 | 24108627788 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X31 | 2 | 24108644653 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X21 | 5 | 24108644654 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X51 | 1 | 24108644655 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M5X12 | 2 | 24108644657 | Shop at ECS Tuning | |||||
| 06 | Securing plate | 1 | 24308644656 | Shop at ECS Tuning | ||||||
| 07 | Securing plate | 1 | 24308627850 | Shop at ECS Tuning | ||||||
| 08 | Rotational-speed sensor | 1 | 24628642586 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Oil Pan | 1 | 24118627787 | Shop at ECS Tuning | ||||||
| -- | Hex bolt | M8X15,5 | 1 | 24108627788 | Shop at ECS Tuning | |||||
| 09 | Screw | M6X14 | 1 | 24608627856 | Shop at ECS Tuning | |||||
| 10 | Cable harness | 1 | 24368642585 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Securing plate | 1 | 24308627854 | Shop at ECS Tuning | ||||||
| -- | Gasket | 1 | 24278627852 | Shop at ECS Tuning | ||||||
| -- | O-ring | 34X2,4 | 1 | 24278627853 | Shop at ECS Tuning | |||||
| -- | Oil Pan | 1 | 24118627787 | Shop at ECS Tuning | ||||||
| -- | Hex bolt | M8X15,5 | 13 | 24108627788 | Shop at ECS Tuning | |||||
| 11 | Securing plate | 1 | 24308627854 | Shop at ECS Tuning | ||||||
| 12 | Gasket | 1 | 24278627852 | Shop at ECS Tuning | ||||||
| 13 | O-ring | 34X2,4 | 1 | 24278627853 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer 218dX GA8F22AW valve body and mounted parts?
- This technical diagram illustrates the GA8F22AW valve body and mounted parts within the Automatic transmission group for the 2 Series F46 Gran Tourer 218dX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Control unit (Part #24008642390).
- Which models use the hardware listed in this GA8F22AW valve body and mounted parts?
- The hardware and components featured in the GA8F22AW valve body and mounted parts are specific to the 2 Series F46 Gran Tourer 218dX produced during 2018. These technical specifications ensure that parts like the Control unit (24008642390) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8F22AW valve body and mounted parts assembly?
- Each item in the GA8F22AW valve body and mounted parts corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer 218dX, you can identify the Control unit by locating its position on the schematic, which then links to the official BMW part number 24008642390 for the Automatic transmission section.
