Gearbox mounting parts for BMW 3 Series E36 318ti (1996)

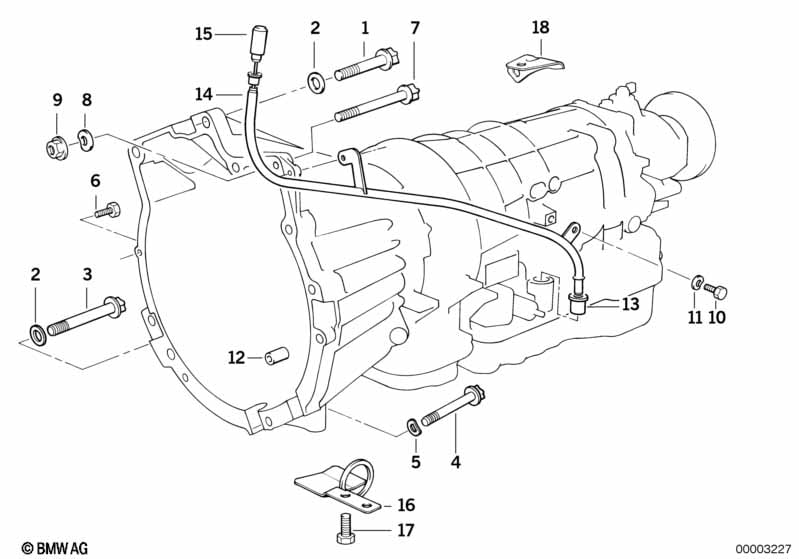

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A4S 310R A4S 270R |
|||||||||
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Washer | 12-200 HV-ZNS3 | 4 | 07119906063 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B10-ZNS3 | 2 | 07/2000 | 07119904463 | Shop at ECS Tuning | ||||
| 08 | Washer | D=10MM | 2 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 16 | Lambda-probe bracket | 1 | 12521734310 | $3.66 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Bracket | 1 | 24141218653 | $3.76 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Gearbox mounting parts?
- This technical diagram illustrates the Gearbox mounting parts within the Automatic transmission group for the 3 Series E36 318ti produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222891).
- Which models use the hardware listed in this Gearbox mounting parts?
- The hardware and components featured in the Gearbox mounting parts are specific to the 3 Series E36 318ti produced during 1996. These technical specifications ensure that parts like the Torx bolt (23001222891) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting parts assembly?
- Each item in the Gearbox mounting parts corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222891 for the Automatic transmission section.
