A5S310Z lubric.system/brake clutch c1 for BMW 3 Series E36 M3 (1999)

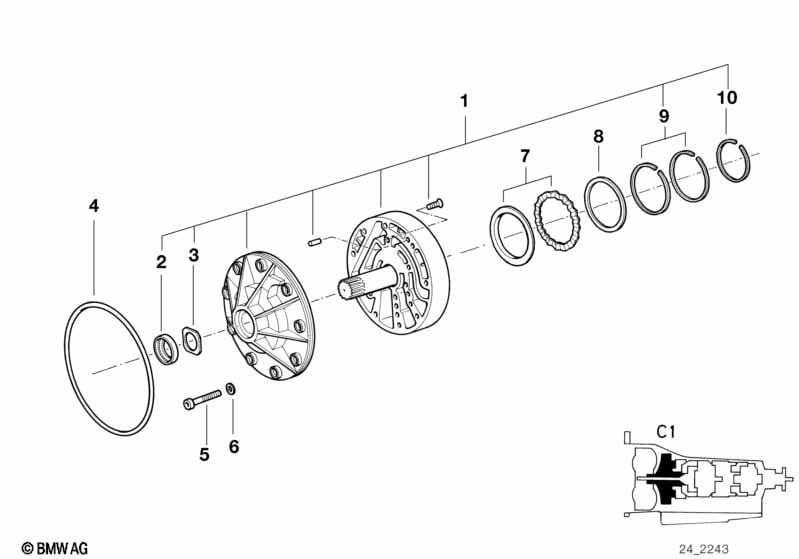

This A5S310Z lubric.system/brake clutch c1 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lubrication system | 1 | 24311421786 | $1274.17 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24271421722 | $69.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shaft seal | 40X52X7 | 1 | 24311422671 | $11.45 | Shop at ECS Tuning | ||||
| 03 | Washer | 1 | 24311218533 | $2.29 | Shop at ECS Tuning | |||||
| 04 | O-ring | 210X3 | 1 | 24311219166 | $10.24 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | M6X50 | 9 | 24311219386 | $1.89 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 9 | 24311219165 | $1.31 | Shop at ECS Tuning | |||||
| 07 | AX bearing | 1 | 24311219382 | $13.29 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24271421722 | $69.13 | ENDED | Shop at ECS Tuning | ||||
| 08 | Set of adjusting plates | 1 | 24271421722 | $69.13 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rectangring | 2 | 24311219380 | $5.97 | Shop at ECS Tuning | |||||
| 10 | Rectangring | 1 | 24311219381 | $8.73 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 A5S310Z lubric.system/brake clutch c1?
- This technical diagram illustrates the A5S310Z lubric.system/brake clutch c1 within the Automatic transmission group for the 3 Series E36 M3 produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Lubrication system (Part #24311421786).
- Which models use the hardware listed in this A5S310Z lubric.system/brake clutch c1?
- The hardware and components featured in the A5S310Z lubric.system/brake clutch c1 are specific to the 3 Series E36 M3 produced during 1999. These technical specifications ensure that parts like the Lubrication system (24311421786) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S310Z lubric.system/brake clutch c1 assembly?
- Each item in the A5S310Z lubric.system/brake clutch c1 corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Lubrication system by locating its position on the schematic, which then links to the official BMW part number 24311421786 for the Automatic transmission section.
