A5S310Z drive clutch A for BMW 3 Series E36 320i (1996)

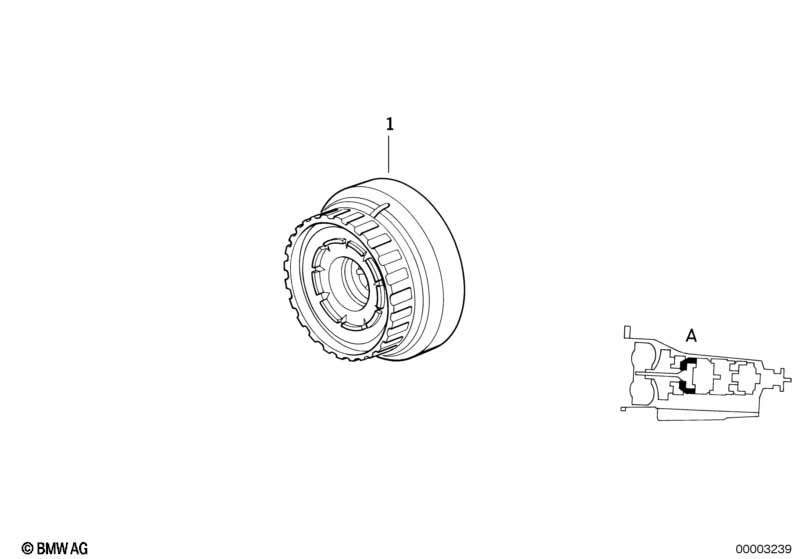

This A5S310Z drive clutch A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clutch A | 1 | 24237506675 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24271421722 | $69.13 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i A5S310Z drive clutch A?
- This technical diagram illustrates the A5S310Z drive clutch A within the Automatic transmission group for the 3 Series E36 320i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Clutch A (Part #24237506675).
- Which models use the hardware listed in this A5S310Z drive clutch A?
- The hardware and components featured in the A5S310Z drive clutch A are specific to the 3 Series E36 320i produced during 1996. These technical specifications ensure that parts like the Clutch A (24237506675) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S310Z drive clutch A assembly?
- Each item in the A5S310Z drive clutch A corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Clutch A by locating its position on the schematic, which then links to the official BMW part number 24237506675 for the Automatic transmission section.
