A5S300J oil pan for BMW 3 Series E36 320i (1994)

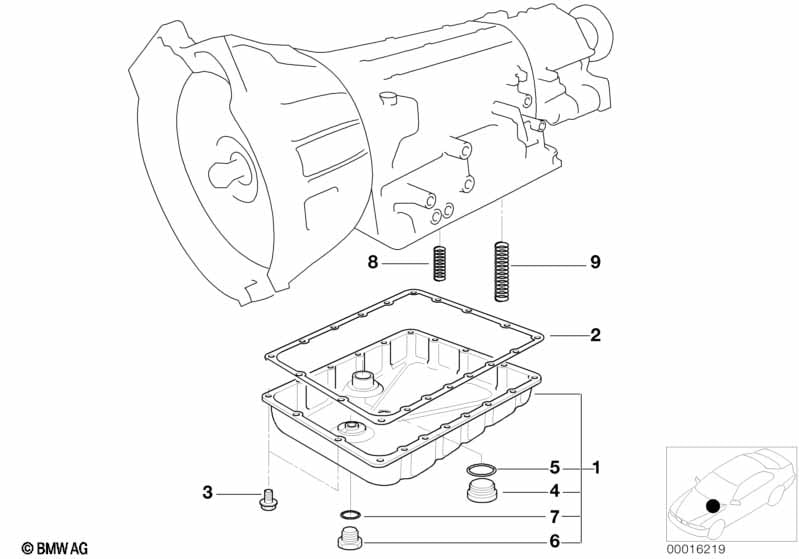

This A5S300J oil pan technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Oil Pan | 1 | 24111219537 | +core | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 24111421809 | $37.48 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | 1 | 24111421816 | ENDED | Shop at ECS Tuning | |||||
| 04 | Screw plug | 1 | 24111219538 | ENDED | Shop at ECS Tuning | |||||
| 05 | Gasket ring | 1 | 24111219539 | Shop at ECS Tuning | ||||||
| 06 | Screw plug | 1 | 24111219540 | Shop at ECS Tuning | ||||||
| 07 | Gasket ring | 1 | 24111219541 | Shop at ECS Tuning | ||||||
| 08 | Compression spring | 1 | 24341422228 | ENDED | Shop at ECS Tuning | |||||
| 09 | Compression spring | 1 | 24341422226 | ENDED | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i A5S300J oil pan?
- This technical diagram illustrates the A5S300J oil pan within the Automatic transmission group for the 3 Series E36 320i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #24111219537).
- Which models use the hardware listed in this A5S300J oil pan?
- The hardware and components featured in the A5S300J oil pan are specific to the 3 Series E36 320i produced during 1994. These technical specifications ensure that parts like the Oil Pan (24111219537) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S300J oil pan assembly?
- Each item in the A5S300J oil pan corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 24111219537 for the Automatic transmission section.
