GA8HP75Z torque converter/seal elements for BMW 7 Series G12 730LdX (2018)

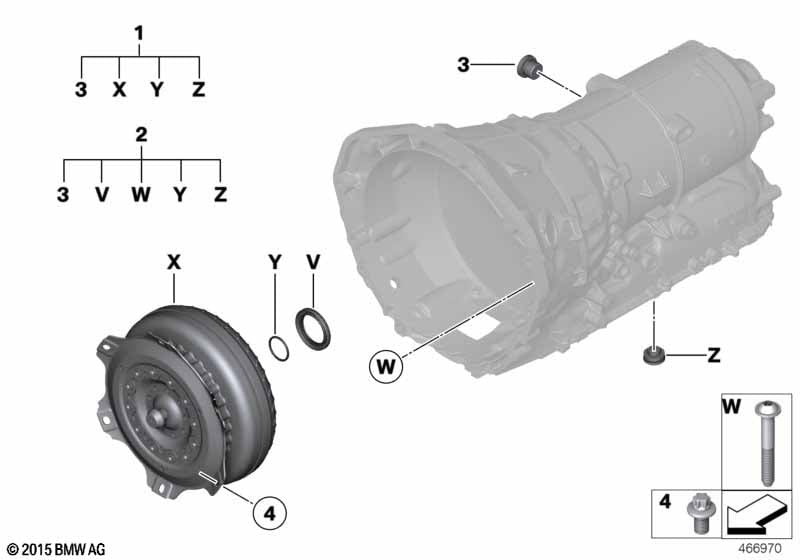

This GA8HP75Z torque converter/seal elements technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit for torque converter | GA8HP75 | 1 | 24405A13207 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | ASA-Bolt | M10X1X17,5 ZNS3 | 6 | 24407629873 | Shop at ECS Tuning | |||||
| 02 | Repair kit for drive unit | 1 | 24405A131F0 | Shop at ECS Tuning | ||||||
| 03 | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M10X17,5Z1-10.9 | 6 | 24407561393 | $1.68 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 730LdX GA8HP75Z torque converter/seal elements?
- This technical diagram illustrates the GA8HP75Z torque converter/seal elements within the Automatic transmission group for the 7 Series G12 730LdX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit for torque converter (Part #24405A13207).
- Which models use the hardware listed in this GA8HP75Z torque converter/seal elements?
- The hardware and components featured in the GA8HP75Z torque converter/seal elements are specific to the 7 Series G12 730LdX produced during 2018. These technical specifications ensure that parts like the Repair kit for torque converter (24405A13207) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8HP75Z torque converter/seal elements assembly?
- Each item in the GA8HP75Z torque converter/seal elements corresponds to the numbered list below the illustration. For the 7 Series G12 730LdX, you can identify the Repair kit for torque converter by locating its position on the schematic, which then links to the official BMW part number 24405A13207 for the Automatic transmission section.
