GA8P75HZ wiring harness, oil pump/sensor for BMW 3 Series G20 Sedan LCI 330e (2024)

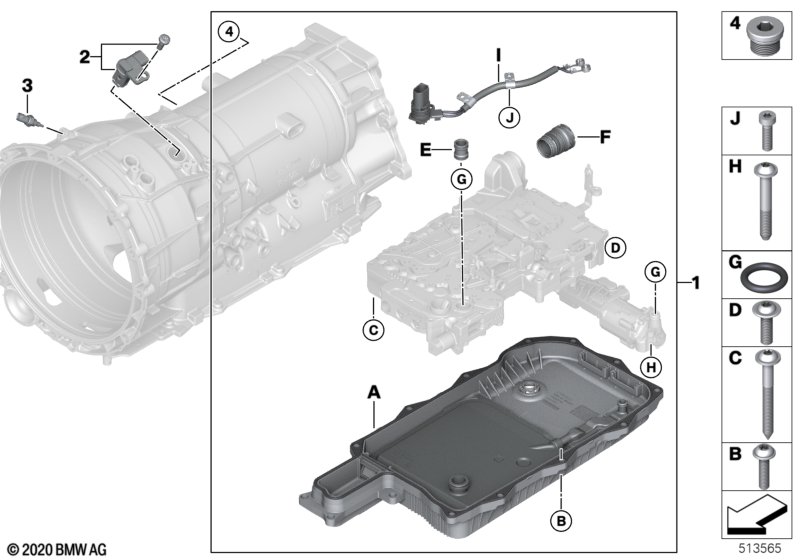

This GA8P75HZ wiring harness, oil pump/sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit, wiring harness | 1 | 24008672569 | Shop at ECS Tuning | ||||||
| 02 | Repair kit for sensor | 1 | 24158632195 | Shop at ECS Tuning | ||||||
| 03 | Temperature sensor coolant / oil | 1 | 13627580635 | Shop at ECS Tuning | ||||||
| 04 | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning |
