Gearbox mounting parts for BMW 4 Series F36 Gran Coupé LCI 430i (2021)

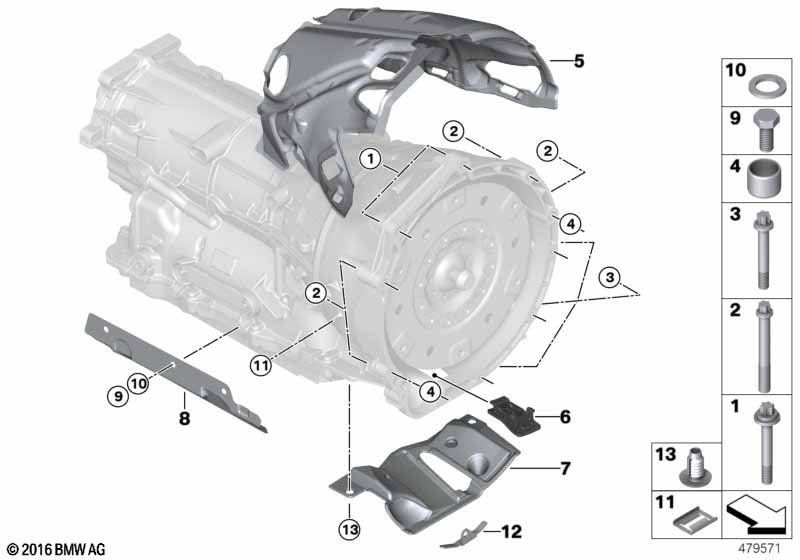

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X100-8.8ZNS3 | 4 | 23007565047 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Sound insulation | 1 | 24008632114 | Shop at ECS Tuning | ||||||
| 06 | Cap | 1 | 24147591704 | Shop at ECS Tuning | ||||||
| 07 | Acoustic capsule, lower | 1 | 24008612330 | Shop at ECS Tuning | ||||||
| 08 | Heat resistant plate | 1 | 24147644617 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt with washer | M8X18-U1-8.8 | 3 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 10 | Washer | 12-200 HV-ZNS3 | 3 | 07119906063 | Shop at ECS Tuning | |||||
| 11 | Spring nut | 2 | 24147605027 | Shop at ECS Tuning | ||||||
| 12 | Holder | 1 | 24148653962 | Shop at ECS Tuning | ||||||
| 13 | Clip | 2 | 24148616009 | Shop at ECS Tuning |
