A5S440Z control valve assy for BMW 5 Series E39 535i (2003)

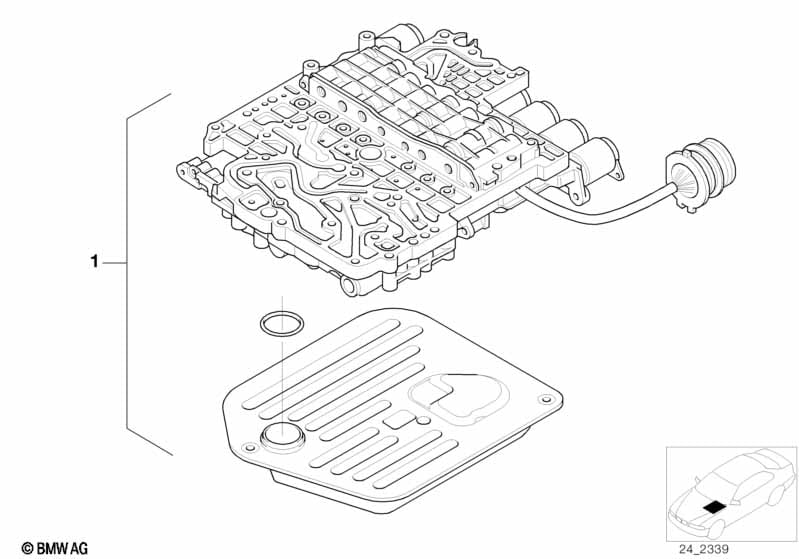

This A5S440Z control valve assy technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN switch | 1 | 09/1998 | 24347521639 | $1901.71 | +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i A5S440Z control valve assy?
- This technical diagram illustrates the A5S440Z control valve assy within the Automatic transmission group for the 5 Series E39 535i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN switch (Part #24347521639).
- Which models use the hardware listed in this A5S440Z control valve assy?
- The hardware and components featured in the A5S440Z control valve assy are specific to the 5 Series E39 535i produced during 2003. These technical specifications ensure that parts like the RP REMAN switch (24347521639) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S440Z control valve assy assembly?
- Each item in the A5S440Z control valve assy corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the RP REMAN switch by locating its position on the schematic, which then links to the official BMW part number 24347521639 for the Automatic transmission section.
