A5S325Z oil pan for BMW 5 Series E39 528i (2000)

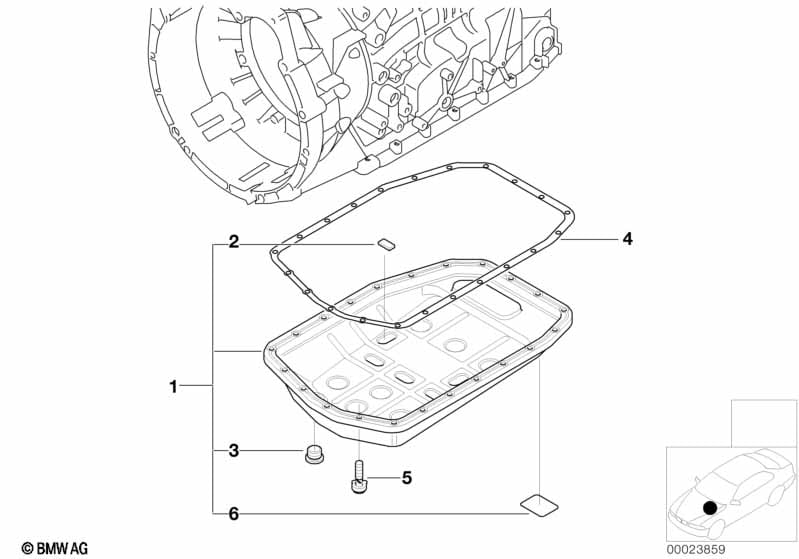

This A5S325Z oil pan technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 09/1998 | 24117507556 | $79.98 | Shop at ECS Tuning | ||||
| 02 | Magnet | 8 | 09/1998 | 24111206468 | $4.62 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M14X1,5 | 1 | 09/1999 | 24117507555 | $8.60 | Shop at ECS Tuning | |||
| 04 | Gasket | 1 | 09/1998 | 24101423380 | $16.97 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | M6X22 | 22 | 09/1998 | 24101423273 | $1.68 | Shop at ECS Tuning | |||
| 06 | Stick-on label | 1 | 09/1998 | 24111423619 | $3.98 | Shop at ECS Tuning |
