GA8G458W torque conv./transm.oil cooler for BMW MINI F56 LCI JCW (2024)

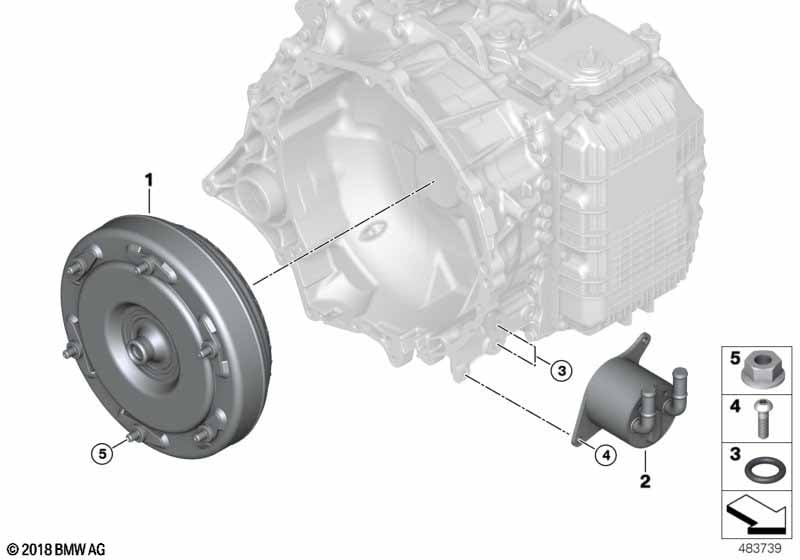

This GA8G458W torque conv./transm.oil cooler technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

GA8G458W torque conv./transm.oil cooler
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Torque converter GA8G45AW 1 24408699936 Shop at ECS Tuning
only in conjunction with
-- Shaft oil seal, driveshaft 42X62X6 1 24278699930 Shop at ECS Tuning
02 Oil cooler 1 24148699905 Shop at ECS Tuning
only in conjunction with
-- O-ring 1 24278699907 Shop at ECS Tuning
03 O-ring 2 24278699907 Shop at ECS Tuning
04 Torx bolt M8X24 3 24108627864 Shop at ECS Tuning
05 Hex nut M10X1-10-ZNS3 6 07119905307 $1.28 Shop at ECS Tuning
