GA8G45AW switch unit and mounted parts for BMW MINI F56 JCW (2021)

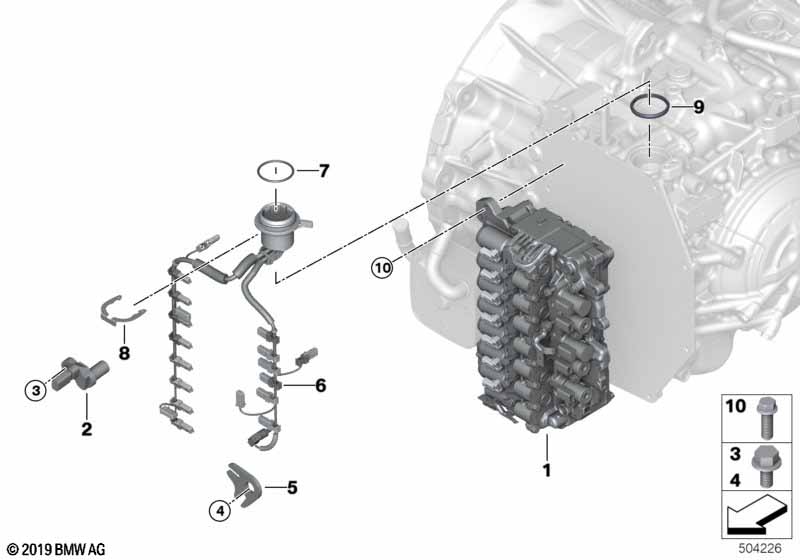

This GA8G45AW switch unit and mounted parts technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit | 1 | 03/2019 | 24338744991 | Shop at ECS Tuning | |||||
| 02 | Rotational-speed sensor | 1 | 24358699903 | Shop at ECS Tuning | ||||||
| 03 | Screw | M6X14 | 1 | 24608627856 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X18 | 1 | 24147952640 | Shop at ECS Tuning | |||||
| 05 | Bracket, cable harness transmission | GA8G45AW | 1 | 24147952639 | Shop at ECS Tuning | |||||
| 06 | Cable harness | 1 | 11/2018 | 24008744992 | Shop at ECS Tuning | |||||
| 07 | O-ring | 35X2,4 | 1 | 24277952641 | Shop at ECS Tuning | |||||
| 08 | Securing plate | 1 | 24308627854 | Shop at ECS Tuning | ||||||
| 09 | Gasket | 1 | 24278627852 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt | M6X21 | 10 | 24108644654 | Shop at ECS Tuning |
