GA8G45AW mounted parts/seals for BMW MINI F56 JCW (2021)

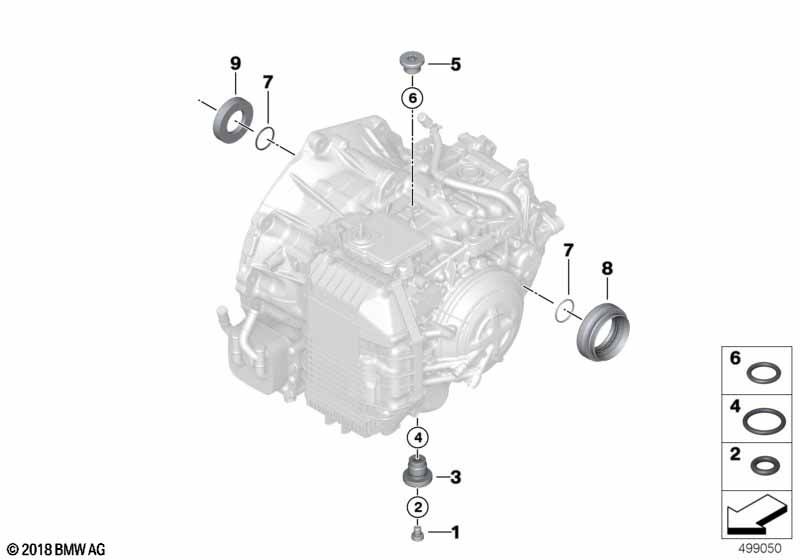

This GA8G45AW mounted parts/seals technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw plug | 1 | 24148699923 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 1.8X6.1 | 1 | 24278699904 | Shop at ECS Tuning | |||||
| 03 | Overflow pipe | 1 | 24148699921 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 2.4X18 | 1 | 24278699922 | Shop at ECS Tuning | |||||
| 05 | Screw plug | M18X1,5 | 1 | 24108627914 | Shop at ECS Tuning | |||||
| 06 | O-ring | 2.2X15.5 | 1 | 24278699924 | Shop at ECS Tuning | |||||
| 07 | O-ring | 2.6X33 | 2 | 24278699900 | Shop at ECS Tuning | |||||
| 08 | Shaft oil seal, driveshaft | 39X63X13.4 | 1 | 24278699895 | Shop at ECS Tuning | |||||
| 09 | Shaft seal, output shaft | 38X75X10 | 1 | 24278699896 | Shop at ECS Tuning |
