Automatic transmiss. GA6HP19Z - 4-wheel for BMW 3 Series E90 325xi (2007)

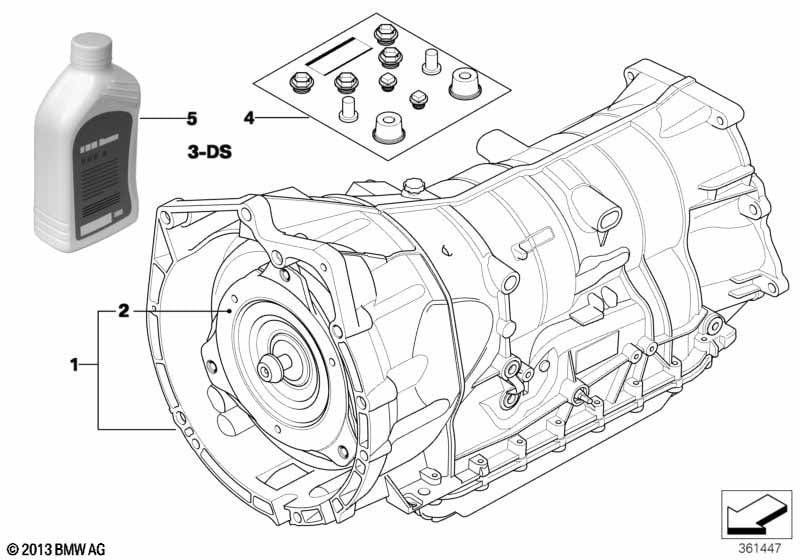

This Automatic transmiss. GA6HP19Z - 4-wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP automatic transmission, Eh | GA6HP19Z - VF | 1 | 24007563322 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set alu. screws automatic transmission | 1 | 24000392608 | $8.29 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 02 | Torque converter | B121 | 1 | 24407588738 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M10X17,5Z1-10.9 | 6 | 24407561393 | $1.68 | Shop at ECS Tuning | ||||
| 03 | Gasket set | 1 | 24277583125 | $186.98 | Shop at ECS Tuning | |||||
| 04 | Set, blind plugs | 1 | 24107604970 | Shop at ECS Tuning | ||||||
| 05 | ATF 2 | 1L | X | 01/2023 | 83222305396 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| 05 | Automatic transmission oil ATF 2 | 1L | X | 83225A92866 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 325xi Automatic transmiss. GA6HP19Z - 4-wheel?
- This technical diagram illustrates the Automatic transmiss. GA6HP19Z - 4-wheel within the Automatic transmission group for the 3 Series E90 325xi produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the RP automatic transmission, Eh (Part #24007563322).
- Which models use the hardware listed in this Automatic transmiss. GA6HP19Z - 4-wheel?
- The hardware and components featured in the Automatic transmiss. GA6HP19Z - 4-wheel are specific to the 3 Series E90 325xi produced during 2007. These technical specifications ensure that parts like the RP automatic transmission, Eh (24007563322) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Automatic transmiss. GA6HP19Z - 4-wheel assembly?
- Each item in the Automatic transmiss. GA6HP19Z - 4-wheel corresponds to the numbered list below the illustration. For the 3 Series E90 325xi, you can identify the RP automatic transmission, Eh by locating its position on the schematic, which then links to the official BMW part number 24007563322 for the Automatic transmission section.
