GA8HP51Z mechatronics for BMW 3 Series G21 Touring LCI 318d (2025)

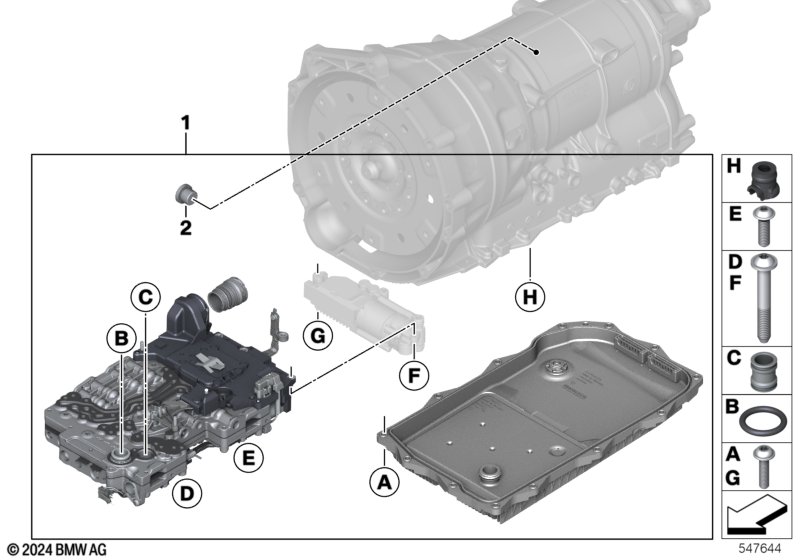

This GA8HP51Z mechatronics technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Energy recovery system Not valid for Chinese market! |
S1CEA=Yes |
|||||||||
| 01 | RP repair kit, mechatronics | GA8HP51 | 1 | 24345B4C889 | Shop at ECS Tuning | |||||
| 01 | RP REMAN repair kit for mechatronics | GA8HP51 | 1 | 24345B4C891 | Shop at ECS Tuning | |||||
| 02 | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| For vehicles with Energy recovery system Not valid for Chinese market! |
S1CEA=Yes |
|||||||||
| 02 | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI 318d GA8HP51Z mechatronics?
- This technical diagram illustrates the GA8HP51Z mechatronics within the Automatic transmission group for the 3 Series G21 Touring LCI 318d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the RP repair kit, mechatronics (Part #24345B4C889).
- Which models use the hardware listed in this GA8HP51Z mechatronics?
- The hardware and components featured in the GA8HP51Z mechatronics are specific to the 3 Series G21 Touring LCI 318d produced during 2025. These technical specifications ensure that parts like the RP repair kit, mechatronics (24345B4C889) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8HP51Z mechatronics assembly?
- Each item in the GA8HP51Z mechatronics corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI 318d, you can identify the RP repair kit, mechatronics by locating its position on the schematic, which then links to the official BMW part number 24345B4C889 for the Automatic transmission section.
