GA8HP76Z mechatronics for BMW 7 Series G12 LCI 730Ld (2022)

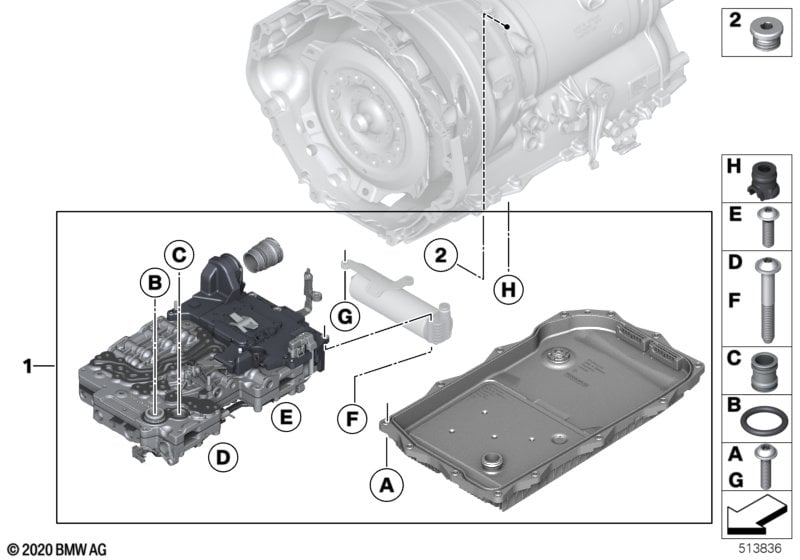

This GA8HP76Z mechatronics technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP repair kit, mechatronics | GA8HP76X | 1 | 03/2024 | 24348743441 | ENDED | Shop at ECS Tuning | |||
| 01 | RP mechatronics | GA8HP76X | 1 | 24345B4C7A1 | Shop at ECS Tuning | |||||
| 01 | RP REMAN mechatronics | GA8HP76X | 1 | 24345B4C7A5 | Shop at ECS Tuning | |||||
| 02 | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 LCI 730Ld GA8HP76Z mechatronics?
- This technical diagram illustrates the GA8HP76Z mechatronics within the Automatic transmission group for the 7 Series G12 LCI 730Ld produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the RP repair kit, mechatronics (Part #24348743441).
- Which models use the hardware listed in this GA8HP76Z mechatronics?
- The hardware and components featured in the GA8HP76Z mechatronics are specific to the 7 Series G12 LCI 730Ld produced during 2022. These technical specifications ensure that parts like the RP repair kit, mechatronics (24348743441) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8HP76Z mechatronics assembly?
- Each item in the GA8HP76Z mechatronics corresponds to the numbered list below the illustration. For the 7 Series G12 LCI 730Ld, you can identify the RP repair kit, mechatronics by locating its position on the schematic, which then links to the official BMW part number 24348743441 for the Automatic transmission section.
