Gearbox mounting parts for BMW 7 Series G70 760iX (2025)

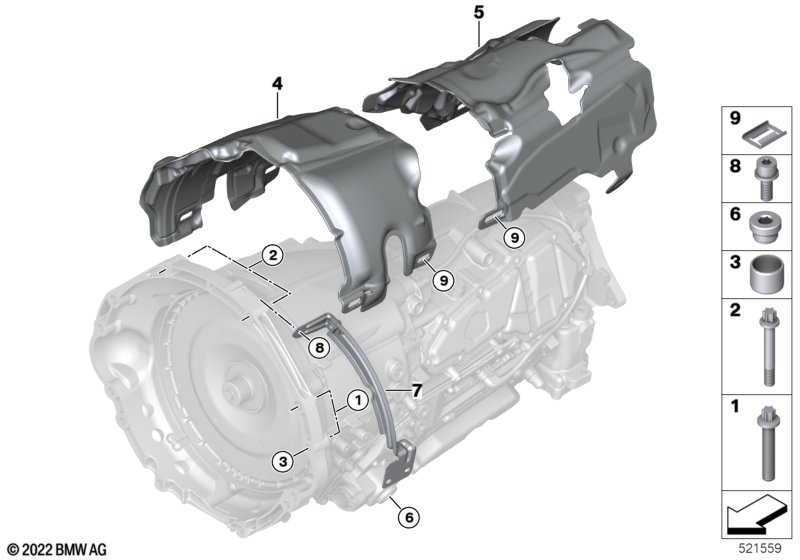

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 760iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M10X55-8.8 ZNS3 | 8 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 02 | ASA-Bolt | M8X50-8.8-ZNS3 | 2 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 03 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Acoustic encapsulation, front | 1 | 24149846196 | Shop at ECS Tuning | ||||||
| 05 | Acoustic capsule rear | 1 | 24149846197 | Shop at ECS Tuning | ||||||
| 06 | Screw plug, power electronics | 1 | 24148645681 | Shop at ECS Tuning | ||||||
| 07 | Heat shield | 1 | 24145A38639 | Shop at ECS Tuning | ||||||
| 08 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 1 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Spring nut | 6 | 24147605027 | Shop at ECS Tuning |
